LCCA30322-FT6
ActivePasternack
BNC MALE TO N FEMALE BULKHEAD US
LCCA30322-FT6
ActivePasternack
BNC MALE TO N FEMALE BULKHEAD US
Description
General part information
LCCA30322-FT6

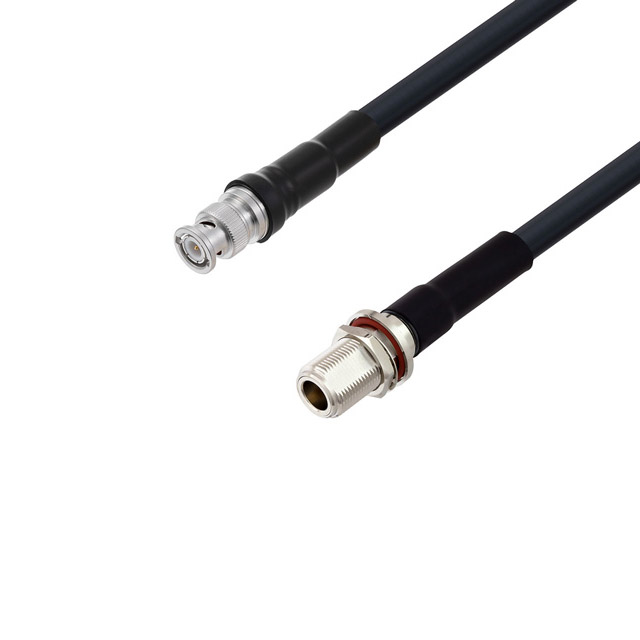

Cable Assembly Coaxial BNC to N-Type LMR 400 DB 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30322-FT6 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR DB |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 72 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
