D3V-016-2C3
ActiveOmron Electronics Inc-EMC Div
MICROSWITCH SNAP ACTION; 0.1A/125VAC; 0.1A/30VDC; SPST-NC; POS: 2
D3V-016-2C3
ActiveOmron Electronics Inc-EMC Div
MICROSWITCH SNAP ACTION; 0.1A/125VAC; 0.1A/30VDC; SPST-NC; POS: 2
Description
General part information

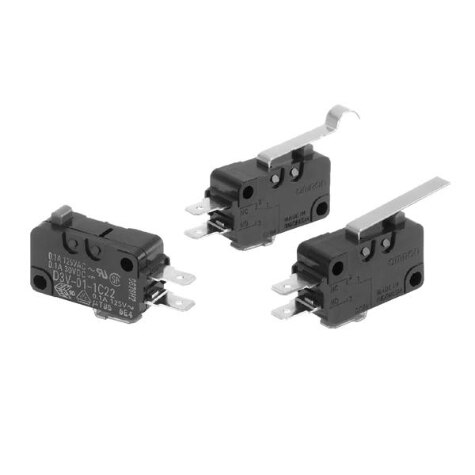

D3V Series
MICROSWITCH SNAP ACTION; 0.1A/125VAC; 0.1A/30VDC; SPST-NC; POS: 2
Technical Specifications
Parameters and characteristics for this part
| Specification | D3V-016-2C3 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPST-NC |
| Current Rating | 100 mA |
| Differential Travel (Linear) | 0.06 in |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position (Length) | 0.815 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.063 in |
| Pretravel (Length) | 0.157 in |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
