B32371A2207J050
ActiveEPCOS - TDK Electronics

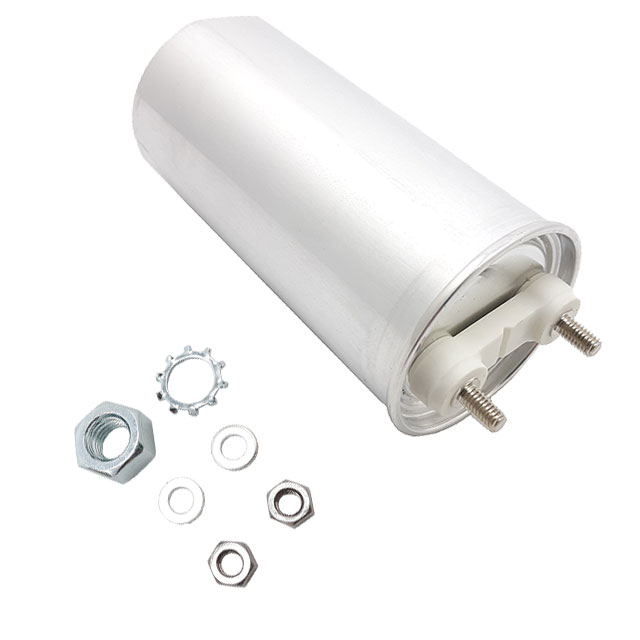

CAP FILM 200UF 5% 675VDC RADIAL
B32371A2207J050
ActiveEPCOS - TDK Electronics
CAP FILM 200UF 5% 675VDC RADIAL
Description
General part information
B32371A2207J050
200 µF Film Capacitor 250V 675V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B32371A2207J050 |
|---|---|
| Applications | General Purpose |
| Capacitance | 200 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 5.315 in |
| Lead Spacing | 1.378 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 2.5 in |
| Termination | Threaded, Male |
| Tolerance | 5 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 675 V |
