Description
General part information

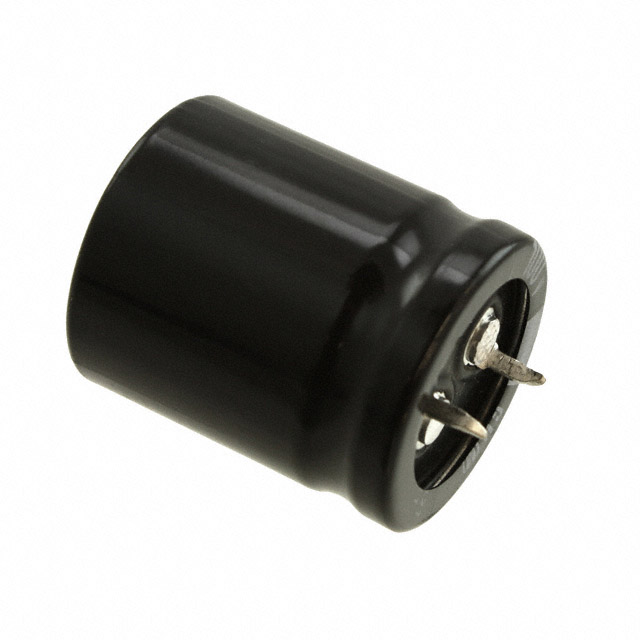

LGU2A122MELA
1200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LGU2A122MELA |
|---|---|
| Applications | General Purpose |
| Capacitance | 1200 µF |
| Height - Seated (Max) | 1.26 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.024 A, 1.56 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
