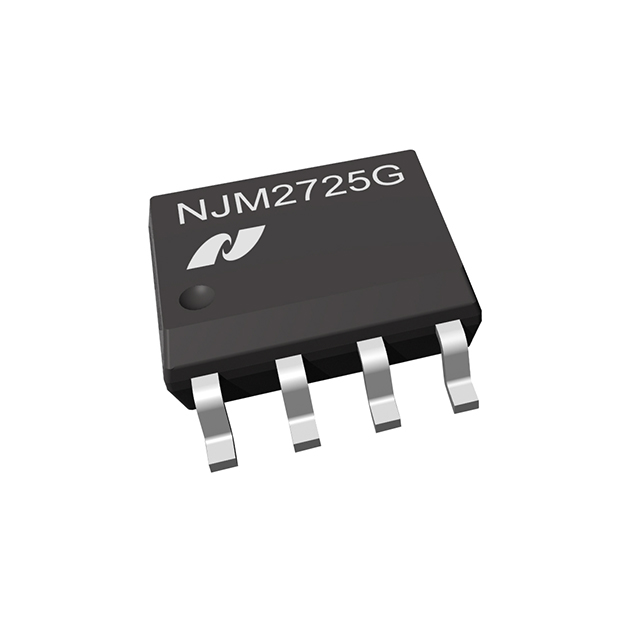

NJM2725G-TE2
ActiveNisshinbo Micro Devices Inc.
160MHZ, 1.4NV/HZ, OPERATIONAL AM
NJM2725G-TE2
ActiveNisshinbo Micro Devices Inc.
160MHZ, 1.4NV/HZ, OPERATIONAL AM
Description
General part information
NJM2725G-TE2
Voltage Feedback Amplifier 2 Circuit Push-Pull 8-SOP
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2725G-TE2 |
|---|---|
| Amplifier Type | Voltage Feedback |
| Current - Input Bias | 4.6 µA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 4 mA |
| Gain Bandwidth Product | 160 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Push-Pull |
| Package Length | 0.154 in |
| Package Name | 8-SOP, 8-SOIC |
| Package Width | 3.9 mm |
| Slew Rate | 15 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Max) | 10 V |
| Voltage - Supply Span (Min) | 4 V |
