7038-0600
ActiveRF / COAXIAL CABLE ASSEMBLY, SMPS JACK TO 2.92MM PLUG, 0.047" FLEXIBLE, 50 OHM, 12 ", 304.8 MM

7038-0600
ActiveRF / COAXIAL CABLE ASSEMBLY, SMPS JACK TO 2.92MM PLUG, 0.047" FLEXIBLE, 50 OHM, 12 ", 304.8 MM
Description
General part information
7038-0600

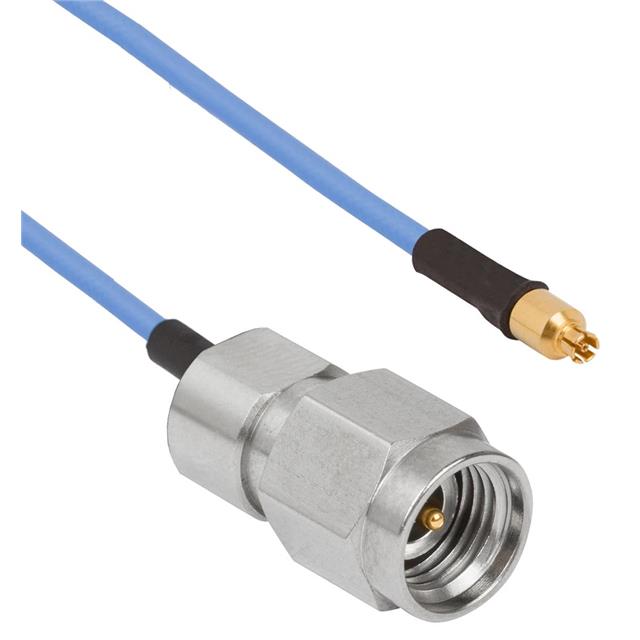

7038-0600 is a SMPS female to 2.92mm male 12" cable assembly for 0.047 cable. SV Microwave has expanded its offering of fixed-length, high-performance RF cable assemblies with additional high-density configurations. Featuring female SMP, SMPM / VITA 67.3 SMPM and SMPS connectors, these cable assemblies are ideal for embedded system applications or anywhere where space requirements are at a premium, including Mil/Aero, 5G Wireless, and Test & Instrumentation markets. Applications includes 5G wireless infrastructure, project designs where space is at a premium, runs where high flexibility and low loss are required, VITA and embedded systems applications, RF test and measurement.
Technical Specifications
Parameters and characteristics for this part
| Specification | 7038-0600 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMPS Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.047 " |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 40 Gbps |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to SMPS |
