S282-320-320-0.5

Active

Shiu Li Technology Co., Ltd.

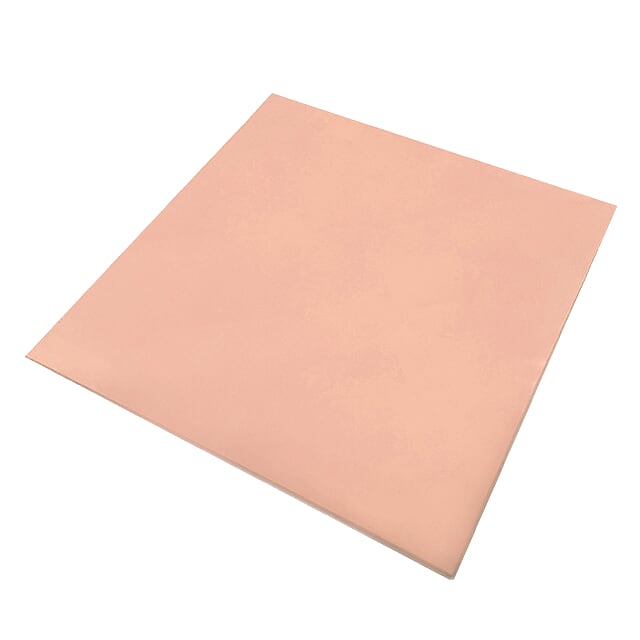

THERM PAD 320X320MM PINK

Deep-Dive with AI

Search across all available documentation for this part.

S282-320-320-0.5

Active

Shiu Li Technology Co., Ltd.

THERM PAD 320X320MM PINK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S282-320-320-0.5	S282 Series

Backing, Carrier	Fiberglass	Fiberglass
Color	Pink	Pink
Outline [x]	320 mm	160 - 320 mm
Outline [y]	320 mm	160 - 320 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	1.7 W/m-K	1.7 - 2.5 W/m-K
Thickness	0.508 mm	0.508 - 5 mm
Thickness	0.02 in	0.02 - 0.197 "
Thickness	-	0.305 - 4.5 mm
Thickness	-	0.012 - 0.177 in
Type	Interface Pad, Sheet	Interface Pad, Sheet
Usage	Thermally Conductive	Thermally Conductive

S282 Series

THERM PAD 160MMX160MM PINK

Part	Shelf Life Start	Type	Backing, Carrier	Thickness [custom]	Thickness [custom]	Thermal Conductivity	Color	Shape	Storage/Refrigeration Temperature	Shelf Life	Usage	Outline [x]	Outline [y]	Thickness	Thickness
Shiu Li Technology Co., Ltd. S282-160-160-4.5	Date of Shipment	Interface Pad, Sheet	Fiberglass	4.5 mm	0.177 in	1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm
Shiu Li Technology Co., Ltd. S282-160-160-1.5	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	1.5 mm	0.0591 "
Shiu Li Technology Co., Ltd. S282-160-160-4.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	4 mm	0.157 in
Shiu Li Technology Co., Ltd. S282-160-160-3.5	Date of Shipment	Interface Pad, Sheet	Fiberglass			2.5 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	3.5 mm	0.138 in
Shiu Li Technology Co., Ltd. S282-320-320-4.5	Date of Shipment	Interface Pad, Sheet	Fiberglass	4.5 mm	0.177 in	1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	320 mm	320 mm
Shiu Li Technology Co., Ltd. S282-160-160-3.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	3 mm	0.118 in
Shiu Li Technology Co., Ltd. S282-160-160-1.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	0.991 mm	0.039 in
Shiu Li Technology Co., Ltd. S282-160-160-5.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	160 mm	160 mm	5 mm	0.197 "
Shiu Li Technology Co., Ltd. S282-320-320-3.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	320 mm	320 mm	3 mm	0.118 in
Shiu Li Technology Co., Ltd. S282-320-320-1.0	Date of Shipment	Interface Pad, Sheet	Fiberglass			1.7 W/m-K	Pink	Square	Room Temperature	120 Months	Thermally Conductive	320 mm	320 mm	0.991 mm	0.039 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 51.49
		10	$ 45.68
		25	$ 43.55
		50	$ 42.00
		100	$ 40.51
		250	$ 38.61

Description

General part information

S282 Series

Thermal Pad Pink 320.00mm x 320.00mm Square

Documents

Technical documentation and resources

No documents available
