5151108F
ActiveDIALIGHT

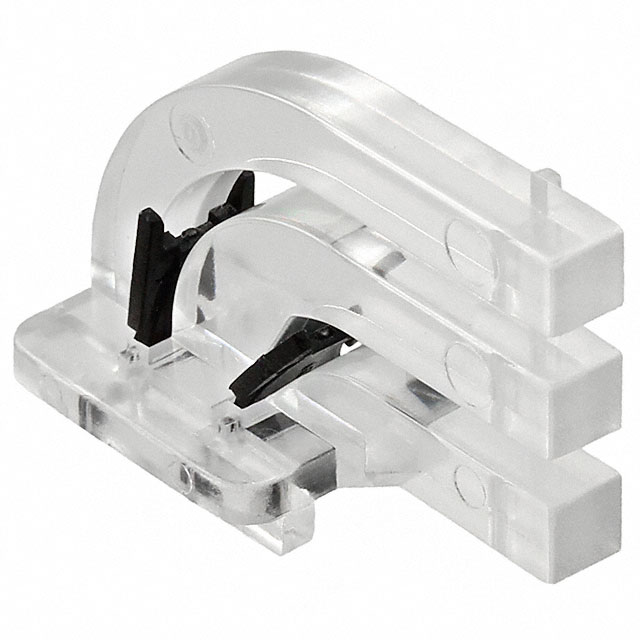

LIGHT PIPE TRI LEVEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5151108F
ActiveDIALIGHT
LIGHT PIPE TRI LEVEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151108F | 5151108 Series |
|---|---|---|
| Color | Clear | Clear |
| Configuration | 3 High | 2 High, 3 High |
| Lens Size | 3 mm | 3 - 3.175 mm |
| Lens Style | Square with Flat Top | Square with Flat Top |
| Mounting Type | Board Mount, Right Angle, Press Fit | Board Mount, Right Angle, Press Fit |
| Type | Rigid | Rigid |
5151108 Series
LIGHT PIPE CUSTOM 2 HIGH
| Part | Color | Lens Style | Lens Size | Mounting Type | Configuration | Type |
|---|---|---|---|---|---|---|
DIALIGHT 5151108801F | Clear | Square with Flat Top | 3.175 mm | Board Mount, Press Fit, Right Angle | 2 High | Rigid |
DIALIGHT 5151108F | Clear | Square with Flat Top | 3 mm | Board Mount, Press Fit, Right Angle | 3 High | Rigid |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.65 | |
| 10 | $ 1.74 | |||
| 100 | $ 1.28 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 1.04 | |||
| 2000 | $ 0.99 | |||
| 5000 | $ 0.94 | |||
| 10000 | $ 0.91 | |||
Description
General part information
5151108 Series
Light Pipe 3 High Clear Rigid Board Mount, Press Fit, Right Angle
