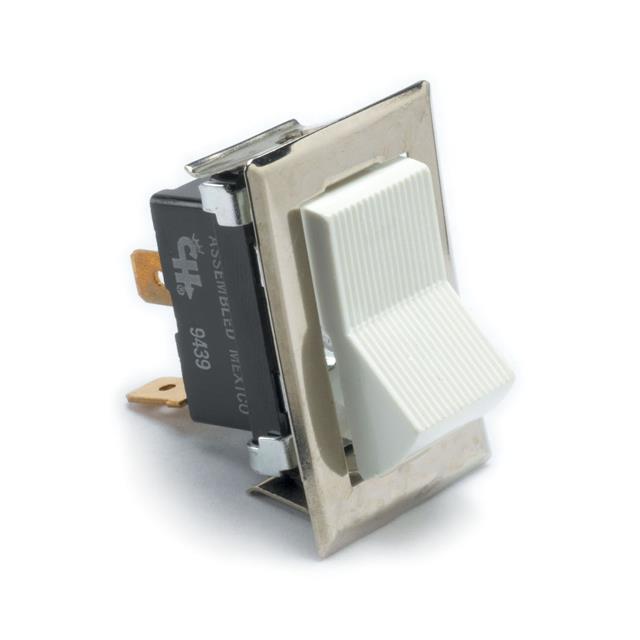

57003-01

Active

Cole Hersee

SWITCH ROCKER SPDT 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPDT 25A 12V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROCKER SPDT 25A 12V

Part	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Circuit	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Switch Function	Termination Style
Cole Hersee 57003-01	Concave (Standard V)	21.08 mm	36.83 mm	12 V	SPDT	No Marking	White	25 A	Panel Mount, Snap-In	On-Off-On	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 11.14

General part information

Rocker Switch SPDT 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
