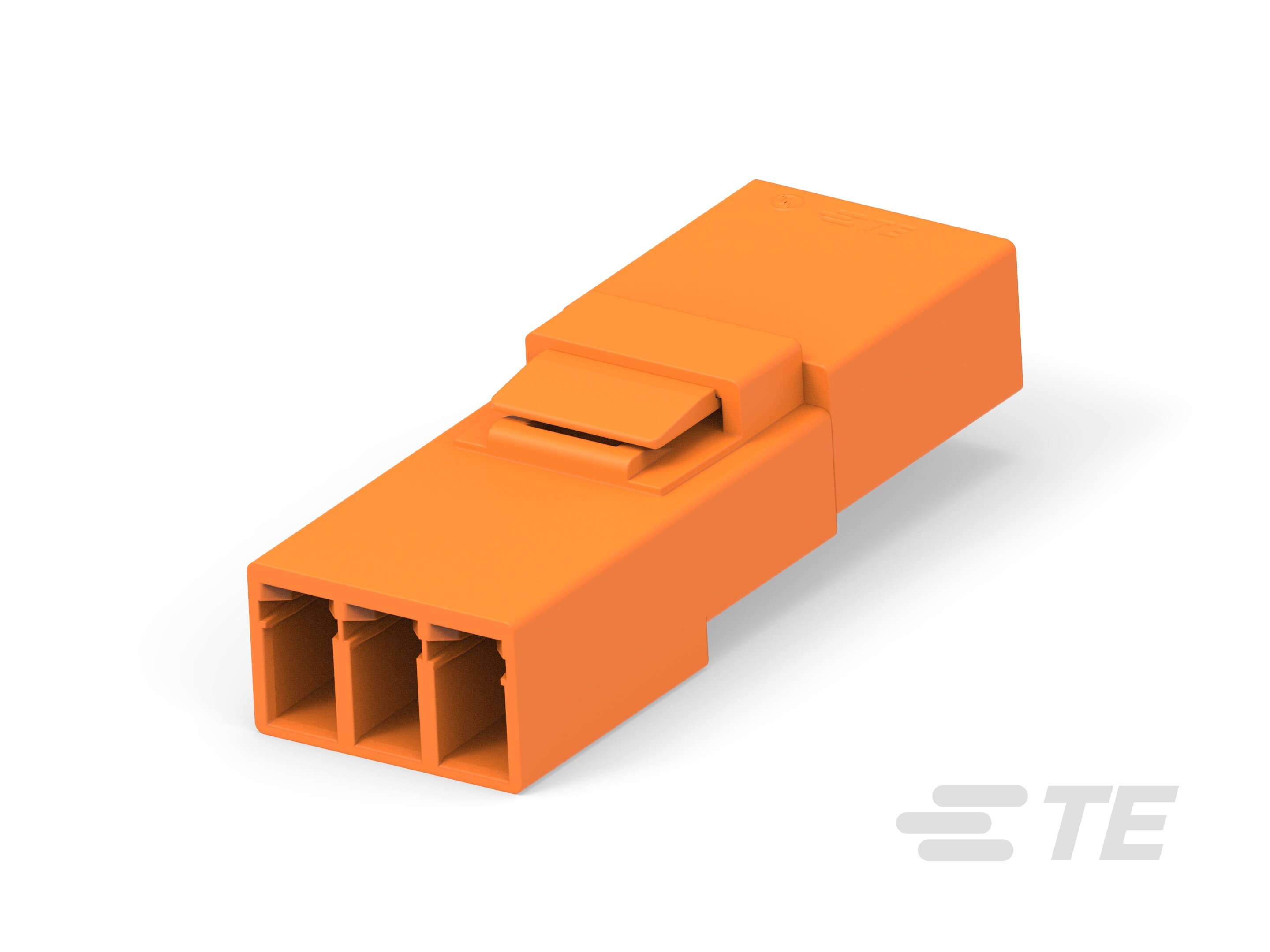

MATING, 3P LATCHED POKE-IN WTW CONN,OE-2834056-3

2834056-3

Active
TE Connectivity AMP Connectors

MATING, 3P LATCHED POKE-IN WTW CONN,OE

Find alt
MATING, 3P LATCHED POKE-IN WTW CONN,OE-2834056-3

2834056-3

Active
TE Connectivity AMP Connectors

MATING, 3P LATCHED POKE-IN WTW CONN,OE

Find alt

Description

General part information

LIGHT-N-LOK Ballast Connector Series

3 Position Ballast Connector, Connector, Poke-In, Wire-to-Wire, 4.5 mm Centerline, Wire & Cable, 16 – 22 AWG, LIGHT-N-LOK Ballast Connector

Technical Specifications

Parameters and characteristics for this part

Specification2834056-3
Connector TypeFemale Sockets, Plug
Contact FinishTin
Contact MaterialCopper Alloy
Fastening TypeLatch Lock
Housing ColorBlack
Housing MaterialThermoplastic
Mounting TypeFree Hanging (In-Line)
Number of Positions3
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.177 in
StyleCable/Wire
TerminationPoke-In
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)18 AWG
