9807 060100

Active

Belden Inc.

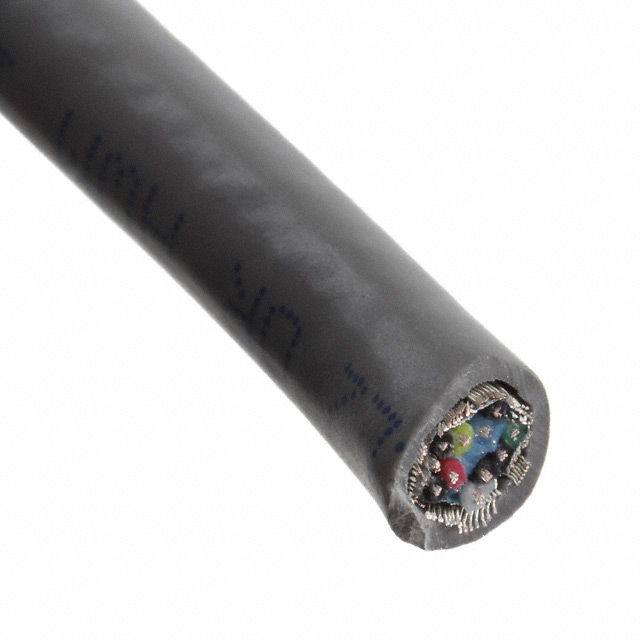

MULTI-PAIR 10COND 28AWG 100'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10COND 28AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	9807 060100

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2960
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Shield Coverage	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Material	Number of Conductors	Ratings	Usage	Wire Gauge	Cable Type	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
Belden Inc. 9807 060100	-20 C	60 °C	Chrome	Polypropylene (PP)	90 % 100 %	30.5 m	100 ft	36 AWG	7	Braid Foil	0.24 in	6.1 mm	Drain Wire	Copper Tinned	10	UL Style 2960	Computer	28 AWG	Multi-Pair	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in
Belden Inc. 9807 0601000	-20 C	60 °C	Chrome	Polypropylene (PP)	90 % 100 %			36 AWG	7	Braid Foil	0.24 in	6.1 mm	Drain Wire	Copper Tinned	10	UL Style 2960	Computer	28 AWG	Multi-Pair	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (5 Pair) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 100.0' (30.5m)
