HG3508DPU-45
ActivePasternack

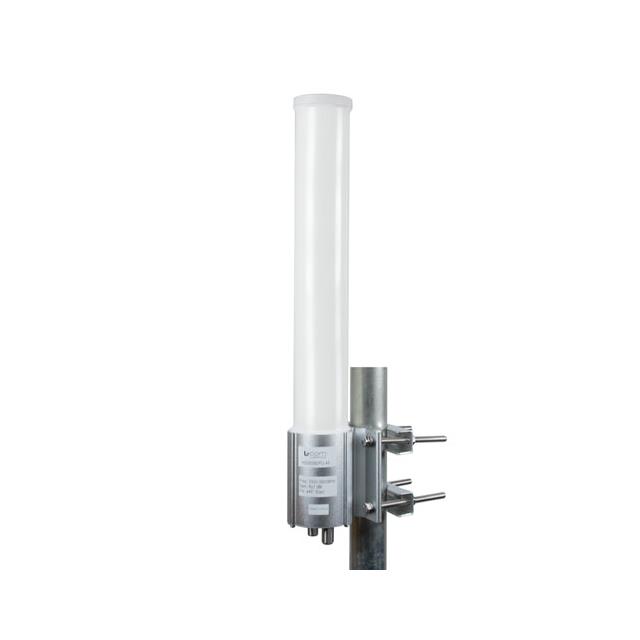

ANTENNA, MIMO, 3.3 GHZ TO 3.8 GHZ, HORIZONTAL / VERTICAL, N CONNECTOR
HG3508DPU-45
ActivePasternack
ANTENNA, MIMO, 3.3 GHZ TO 3.8 GHZ, HORIZONTAL / VERTICAL, N CONNECTOR
Description
General part information
HG3508DPU-45
RF ANTENNA LTE Whip, Straight N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG3508DPU-45 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 3.55 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 3800 MHz |
| Frequency Range (Min) | 3.3 GHz |
| Gain | 9 dBi |
| Height (Max) | 22.4 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 2 |
