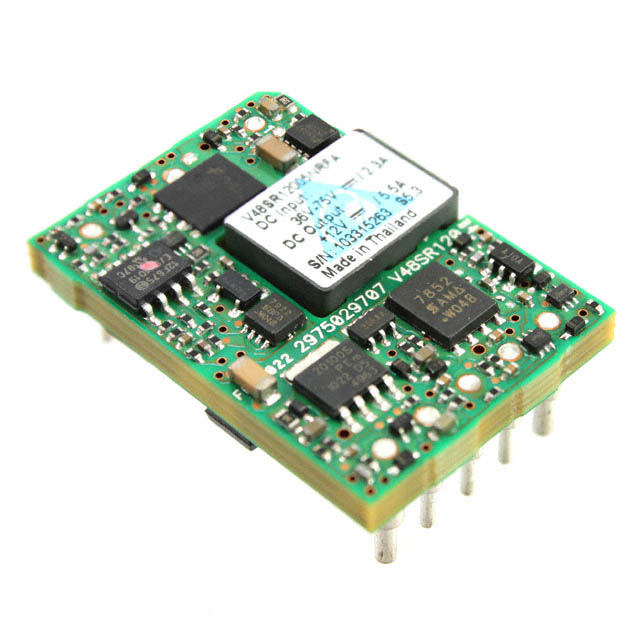

V48SR12005NRFA

Obsolete

Delta Electronics

DC DC CONVERTER 12V 66W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 12V 66W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 1.8V 66W

Part	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Type	Mounting Type	Control Features	Efficiency	Number of Outputs	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics V48SR1R825NNFA	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	1.8 V	Isolated Module	Through Hole	Active Low, Enable	87 %	1	2250 VDC	ITE (Commercial)	75 V	25 A	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	8-DIP Module, 1/16 Brick
Delta Electronics V48SR12005NRFA	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	12 V	Isolated Module	Through Hole	Active Low, Enable	91 %	1	2250 VDC	ITE (Commercial)	75 V	5.5 A	0.36 in	1.3 "	9.2 mm	22.9 mm	33 mm	0.9 "	8-DIP Module, 1/16 Brick	-40 °C	120 °C
Delta Electronics V48SR3R320NRFA	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	Isolated Module	Through Hole	Active Low, Enable	90.5 %	1	2250 VDC	ITE (Commercial)	75 V	20 A	0.37 in	1.3 "	9.4 mm	22.9 mm	33 mm	0.9 "	8-DIP Module, 1/16 Brick
Delta Electronics V48SR15004NRFA	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	15 V	Isolated Module	Through Hole	Active Low, Enable	90.5 %	1	2250 VDC	ITE (Commercial)	75 V	4.4 A	0.37 in	1.3 "	9.5 mm	22.8 mm	33 mm	0.9 "	8-DIP Module, 1/16 Brick	-40 °C	121 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 5.5A 36V - 75V Input

Technical documentation and resources

No documents available
