Description
General part information

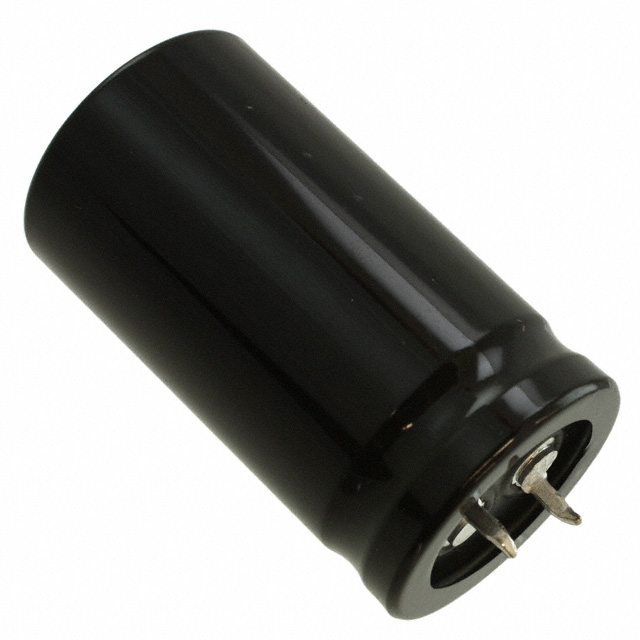

LKX2W221MESA45
220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LKX2W221MESA45 |
|---|---|
| Applications | Audio |
| Capacitance | 220 µF |
| Height - Seated (Max) | 1.85 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.05 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
