PM4546.223NLT
ActivePulse Electronics
FIXED IND 22UH 800MA 1.05OHM SMD
PM4546.223NLT
ActivePulse Electronics
FIXED IND 22UH 800MA 1.05OHM SMD
Description
General part information

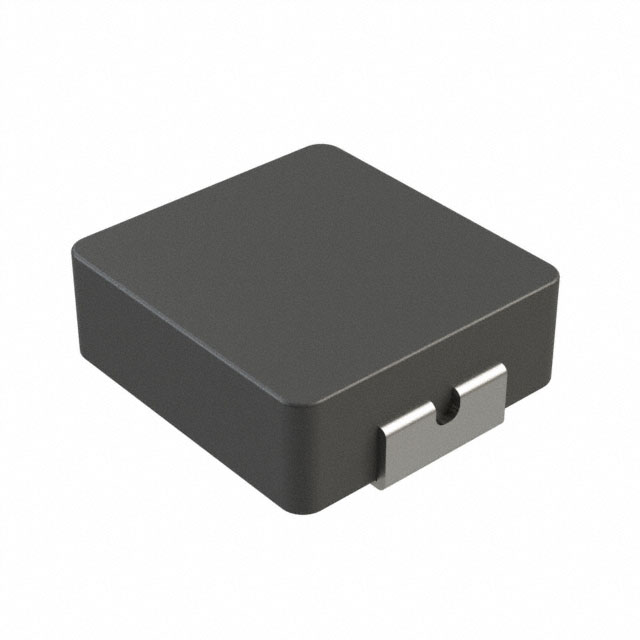

PM4546.223NLT
22 µH Unshielded Molded Inductor 800 mA 1.05Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PM4546.223NLT |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 800 mA |
| DC Resistance (DCR) (Max) | 1.05 Ohm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.175 in |
| Size / Dimension Width | 0.16 in |
| Tolerance | 20 % |
| Type | Molded |
