Description
General part information

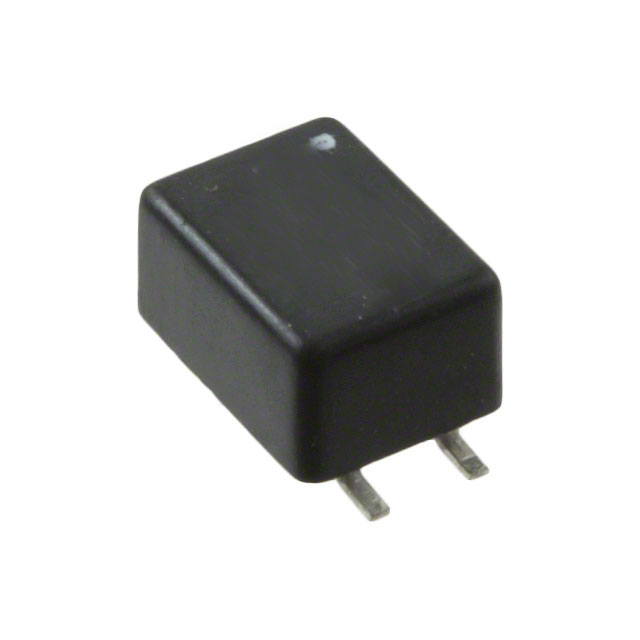

CM2824E182R-10
2 Line Common Mode Choke Surface Mount 1.8 kOhms @ 100 MHz 800mA DCR 260mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM2824E182R-10 |
|---|---|
| Current Rating (Max) | 800 mA |
| DC Resistance (DCR) (Max) | 260 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.193 in |
| Impedance | 1.8 kOhms |
| Lead Count | 4 |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Horizontal |
| Package Leads | 4 Leads, 4 |
| Package Name | Horizontal |
| Size / Dimension Length | 0.354 in |
| Size / Dimension Width | 0.217 in |
| Voltage Rating - DC | 80 VDC |
