2129567-1
ActiveTE Connectivity AMP Connectors

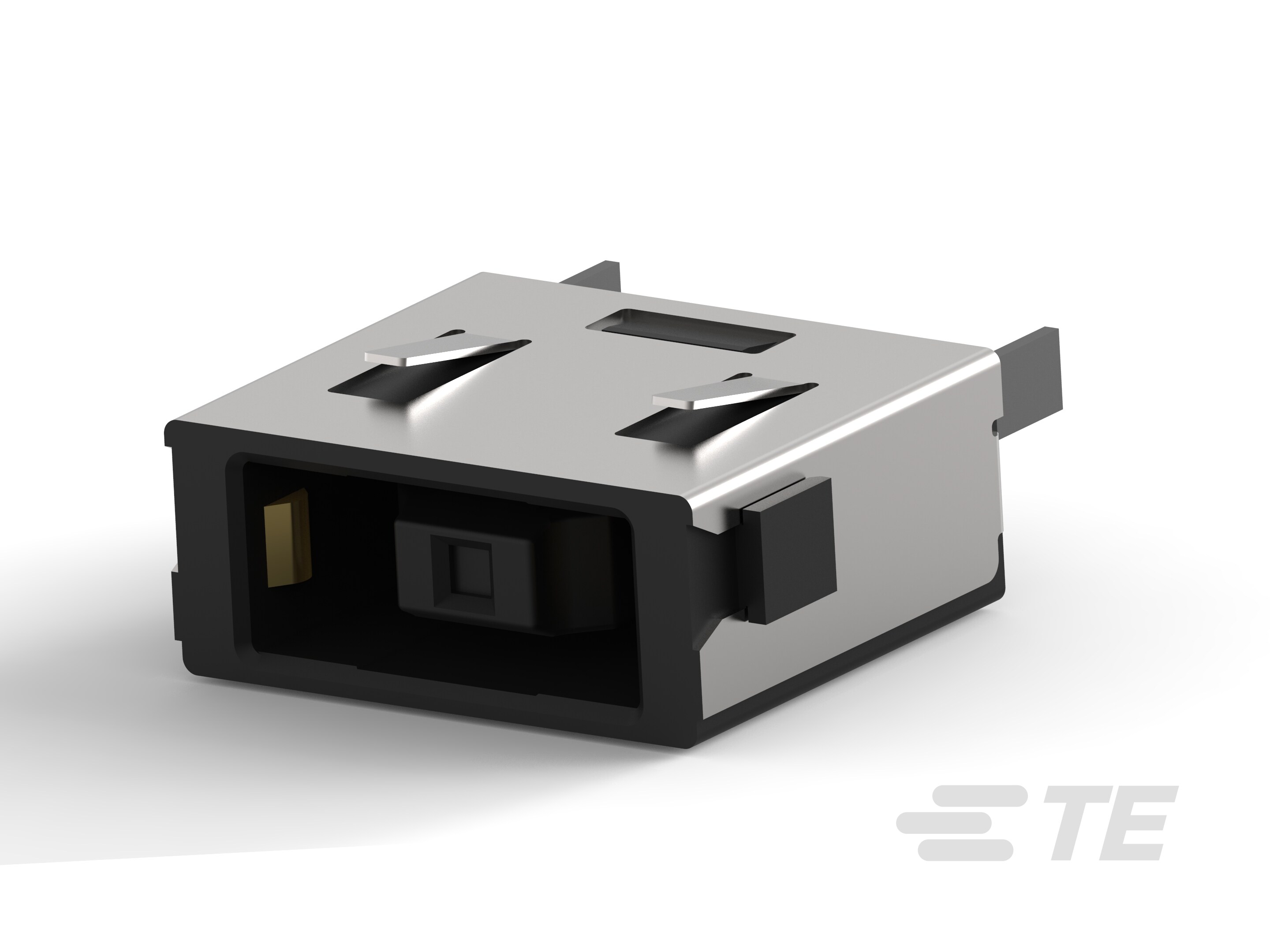

DC POWER CONNECTOR, JACK, 10.7 A, THROUGH HOLE MOUNT, SOLDER
2129567-1
ActiveTE Connectivity AMP Connectors
DC POWER CONNECTOR, JACK, 10.7 A, THROUGH HOLE MOUNT, SOLDER
Description
General part information
2129567-1
Cable-to-Board, 5 Position, Jack, 25 VDC, Wire & Cable, Signal, Cable Mount (Free-Hanging), -40 – 85 °C [-40 – 185 °F], DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2129567-1 |
|---|---|
| Connector Type | Jack |
| Current Rating | 10.7 A |
| Gender | Female |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 5 Contacts |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 25 VAC |
