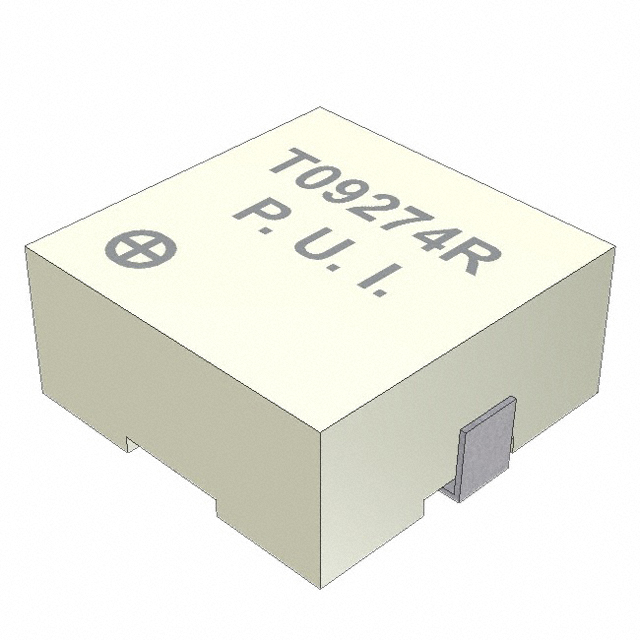

SMT-0927-S-4-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 3.6V 9X9MM SMD
SMT-0927-S-4-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 3.6V 9X9MM SMD
Description
General part information
SMT-0927-S-4-R
Buzzers Transducer, Externally Driven Electromechanical/Magnetic 3.6 V 100mA 2.73kHz 85dB @ 3.6V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-0927-S-4-R |
|---|---|
| Current - Supply | 100 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.73 kHz |
| Height - Seated (Max) | 0.177 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Side |
| Size / Dimension Length | 0.354 in |
| Size / Dimension Width | 0.354 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Electromechanical, Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range (Max) | 4 V |
| Voltage Range (Min) | 2 V |
