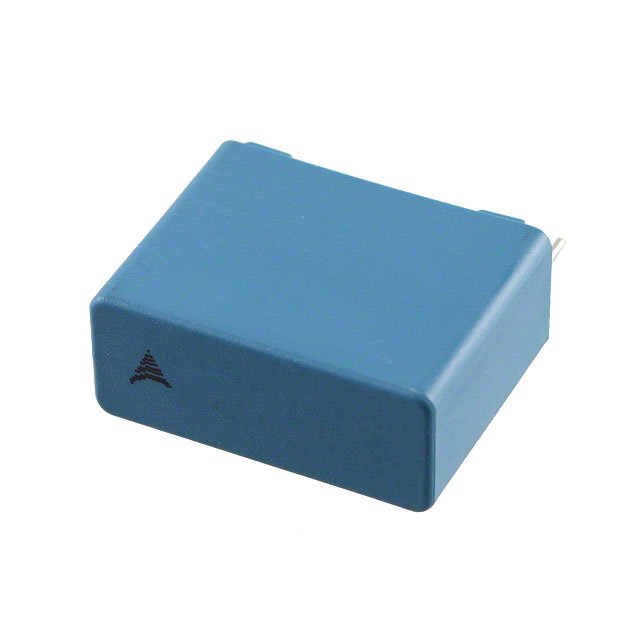

B32653A6474J289
ActiveEPCOS - TDK Electronics
CAP FILM 0.47UF 5% 630VDC RADIAL
B32653A6474J289
ActiveEPCOS - TDK Electronics
CAP FILM 0.47UF 5% 630VDC RADIAL
Description
General part information
B32653A6474J289
0.47 µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32653A6474J289 |
|---|---|
| Applications | DV/DT, DC Link, High Pulse, DC Filtering |
| Capacitance | 0.47 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.807 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
