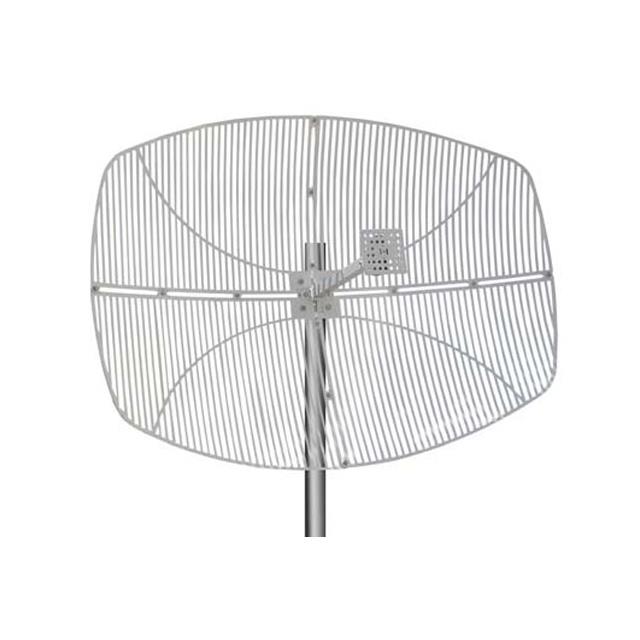

HG2427G
ActivePasternack
ANTGRID 2.4GHZ 27DBI
HG2427G
ActivePasternack
ANTGRID 2.4GHZ 27DBI
Description
General part information
HG2427G
RF ANTENNA 802.11b/g/n, ISM, Wi-Fi, WLAN Parabolic Grid N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2427G |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | WLAN, 802.11b/g/n, ISM, Wi-Fi |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 26.5 dBi |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.4 |
