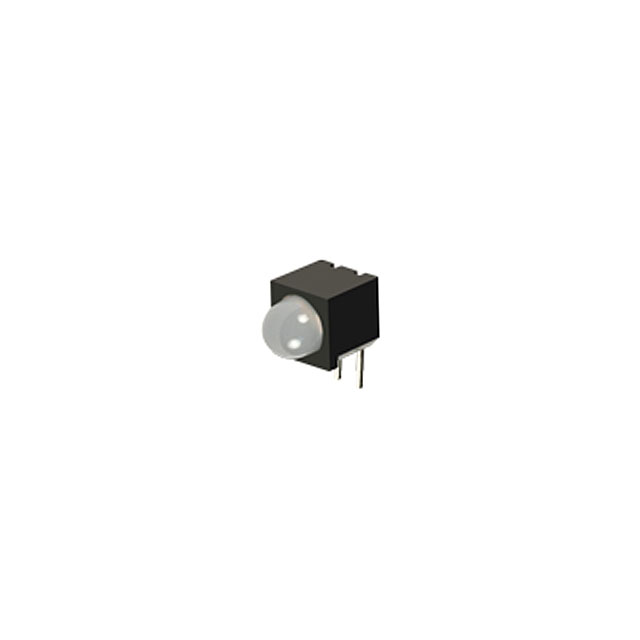

WP77EK/EGW
ActiveKingbright
LED CBI 4.8MM GRN/RED RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP77EK/EGW
ActiveKingbright
LED CBI 4.8MM GRN/RED RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP77EK/EGW |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Current | 25 mA, 30 mA |
| Lens Size [diameter] | 4.8 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused, White |
| Millicandela Rating [custom] | 25 mcd |
| Millicandela Rating [custom] | 15 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.2 V, 2 V |
| Wavelength - Peak | 568 nm, 617 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP77EK/EGW
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 4.80mm Dia Through Hole, Right Angle
