PTCTT95R500GTE
ActiveVishay Dale
PTC RESET FUSE 240V 90MA 4SMD
PTCTT95R500GTE
ActiveVishay Dale
PTC RESET FUSE 240V 90MA 4SMD
Description
General part information
PTCTT95R500GTE

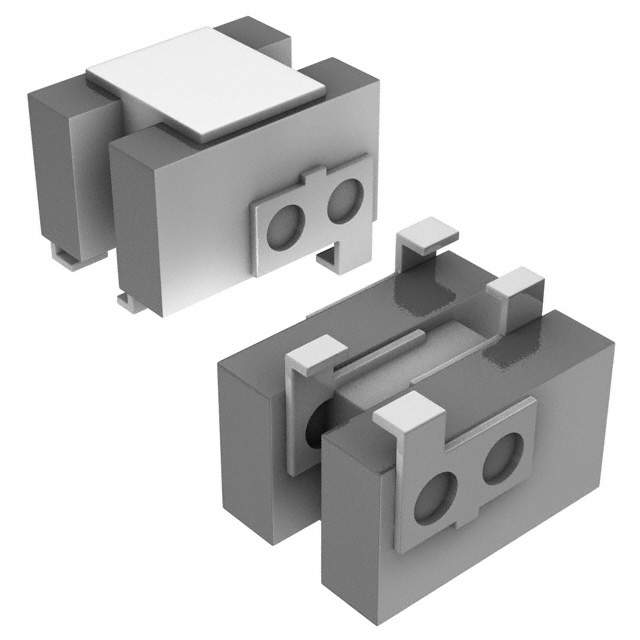

Ceramic PTC Resettable Fuse 240V 90 mA Ih Surface Mount 4-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | PTCTT95R500GTE |
|---|---|
| Current - Hold (Ih) (Max) | 90 mA |
| Current - Max | 2.5 A |
| Current - Trip (It) | 190 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD |
| Resistance - 25°C (Typ) | 50 Ohms |
| Size / Dimension Length | 0.354 in |
| Size / Dimension Width | 0.283 in |
| Thickness (Max) | 0.272 in |
| Time to Trip | 1.2 s |
| Type | Ceramic |
| Voltage - Max | 240 V |
