RT2519GQV(2)
ActiveRichtek USA Inc.

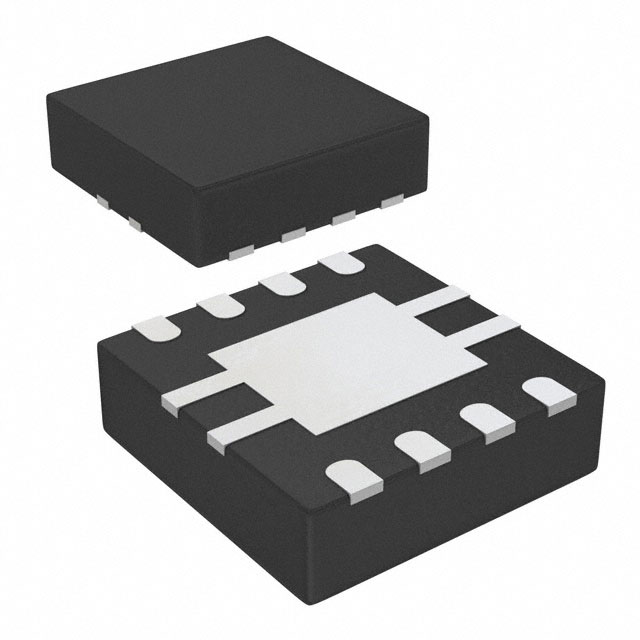

IC REG LINEAR POS ADJ 1A 8VDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT2519GQV(2)
ActiveRichtek USA Inc.
IC REG LINEAR POS ADJ 1A 8VDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RT2519GQV(2) | RT2519 Series |
|---|---|---|
| Control Features | Enable | Enable, Current Limit |
| Current - Output | 1 A | 1 A |
| Current - Quiescent (Iq) | - | 350 µA |
| Current - Supply (Max) [Max] | 350 µA | 350 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Regulators | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad, 8-VQFN Exposed Pad |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | - | 48 dB |
| PSRR | - | 38 dB |
| Supplier Device Package | 8-VDFN (3x3) | 8-VDFN (3x3), 8-AL-DFN (3x3) |
| Voltage - Input (Max) [Max] | 6 V | 2.2 - 6 V |
| Voltage - Output (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.8 V | 0.8 V |
| Voltage Dropout (Max) [Max] | 0.5 V | 0.37 - 0.5 V |
RT2519 Series
IC REG LINEAR POS ADJ 1A 8VDFN
| Part | Output Configuration | Mounting Type | Voltage Dropout (Max) [Max] | Output Type | Protection Features | Control Features | Package / Case | Number of Regulators | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Output (Max) [Max] | Current - Supply (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | PSRR [Max] | PSRR [Min] | Current - Quiescent (Iq) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Richtek USA Inc. RT2519GQV(2) | Positive | Surface Mount | 0.5 V | Adjustable | Over Current, Over Temperature | Enable | 8-VDFN Exposed Pad | 1 | 1 A | -40 °C | 125 ¯C | 8-VDFN (3x3) | 5.5 V | 350 µA | 6 V | 0.8 V | |||
Richtek USA Inc. RT2519WGQV | Positive | Surface Mount | 0.37 V | Adjustable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Current Limit, Enable | 8-VQFN Exposed Pad | 1 | 1 A | -40 °C | 125 ¯C | 8-AL-DFN (3x3) | 5.5 V | 2.2 V | 0.8 V | 48 dB | 38 dB | 350 µA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.35 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.35 | ||
| 10 | $ 0.85 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| Tape & Reel (TR) | 1500 | $ 0.39 | ||
| 3000 | $ 0.36 | |||
| 4500 | $ 0.35 | |||
| 7500 | $ 0.33 | |||
| 10500 | $ 0.32 | |||
| 15000 | $ 0.31 | |||
Description
General part information
RT2519 Series
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-VDFN (3x3)
