16282-2PG-318

Active

Conxall/Switchcraft

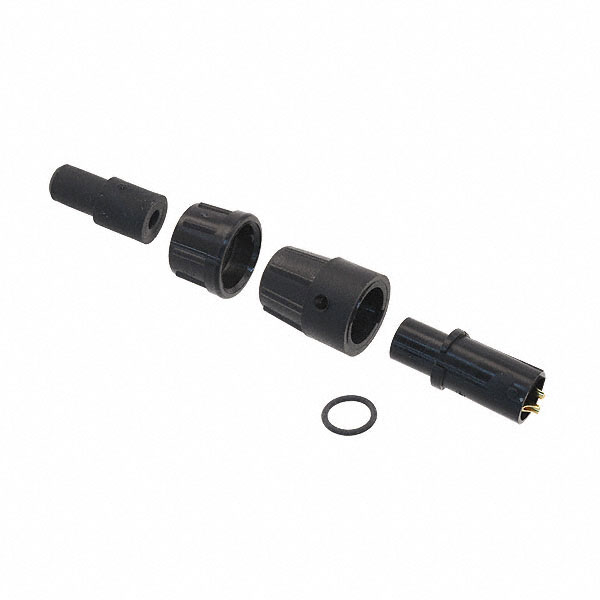

CONN PLUG MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	16282-2PG-318

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Orientation	Contact Material	Primary Material	Mounting Type	Number of Positions	Fastening Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Backshell Material, Plating	Current Rating (Amps)	Features	Ingress Protection	Material Flammability Rating	Applications	Color	Shielding
Conxall/Switchcraft 16282-2PG-318	4.57 mm	0.18 in	0.2 in	5.08 mm	600 VAC	Keyed	Copper Alloy	Plastic	Free Hanging (In-Line)	2	Bayonet Lock	Gold	85 °C	-40 °C	Male Pins, Plug	Thermoplastic	7.5 A	Backshell	IP67 - Dust Tight, Waterproof	UL94 HB	Data, Industrial, Instrumentation, Medical	Black	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
