PI3WVR626XEBEX

Active

Diodes Inc

2:1 MIPI 2-DATA LANE, 1.5GBPS(D-PHY) SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI3WVR626XEBEX

Active

Diodes Inc

2:1 MIPI 2-DATA LANE, 1.5GBPS(D-PHY) SWITCH

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI3WVR626XEBEX

-3db Bandwidth	4.5 GHz
Applications	Telecommunications
Features	MIPI
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Channels [custom]	3
On-State Resistance (Max) [Max]	5 Ohms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

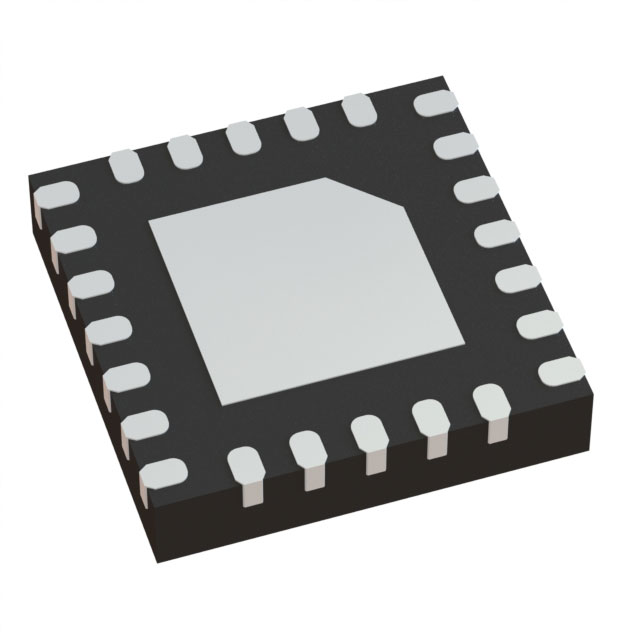

Package / Case	24-XFQFN Exposed Pad
Supplier Device Package	24-X1QFN
Supplier Device Package [x]	2.5
Supplier Device Package [y]	2.5
Switch Circuit	SPDT
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	1.5 V

PI3WVR626 Series

2:1 MIPI 2-Data Lane, 1.5Gbps(D-PHY) Switch

Part	Features	Multiplexer/Demultiplexer Circuit	Package / Case	Number of Channels [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	-3db Bandwidth	On-State Resistance (Max) [Max]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Switch Circuit
Diodes Inc PI3WVR626XEBEX	MIPI	2:1	24-XFQFN Exposed Pad	3	Surface Mount	85 °C	-40 °C	Telecommunications	3.6 V	1.5 V	4.5 GHz	5 Ohms	24-X1QFN	2.5	2.5	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.90
		10	$ 0.80
		25	$ 0.76
		100	$ 0.63
		250	$ 0.59
		500	$ 0.52
		1000	$ 0.41
	Digi-Reel®	1	$ 0.90
		10	$ 0.80
		25	$ 0.76
		100	$ 0.63
		250	$ 0.59
		500	$ 0.52
		1000	$ 0.41
	Tape & Reel (TR)	3500	$ 0.38
		7000	$ 0.36
		10500	$ 0.35
		24500	$ 0.34

Description

General part information

PI3WVR626 Series

The PI3WVR626 is a two-data-lane MIPI switch. This 6 channel single-pole, double-throw (SPDT) switch is optimized for switching between two high-speed (HS) or low-power (LP) MIPI signal. The PI3WVR626 is designed for the MIPI specification and allows connection to CSI/DSI, C-PHY/D-PHY module.
