15-58-W

Active

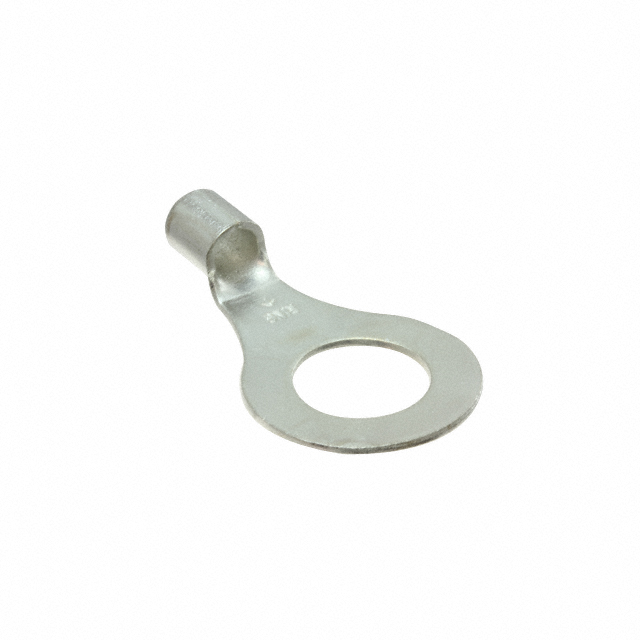

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Part	Mounting Type	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Stud/Tab Size	Features	Terminal Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge	Thickness	Thickness	Termination	Contact Material
3M 15-58-W	Free Hanging (In-Line)	Non-Insulated	28.7 mm	1.13 in	Tin	0.625 Stud	Brazed Seam	Circular	1.97 "	50.04 mm	6 AWG	50 mils	0.05 in	Crimp	Copper, ETP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 5/8 Stud Circular 6 AWG Crimp
