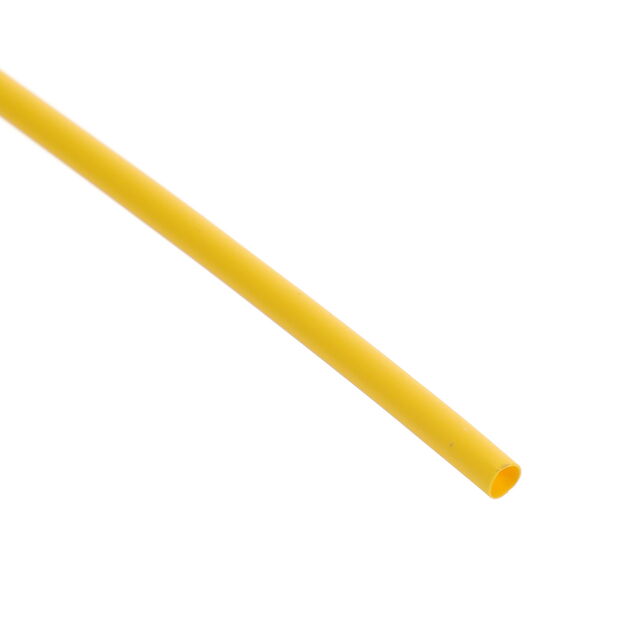

B2 1/8 YELLOW 4FT

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1/8" YELLOW 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sumitube® Solution Guide

B2 1/8 YELLOW 4FT

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1/8" YELLOW 1=1PC

Deep-Dive with AI

DocumentsDatasheet Sumitube® Solution Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B2 1/8 YELLOW 4FT	B2 1/8 Series

Color	Yellow	White, Green, Red, Black, Yellow, Blue
Features	Flame Retardant	Flame Retardant, UV Resistant
Inner Diameter - Recovered [diameter]	0.063 in	0.063 in
Inner Diameter - Recovered [diameter]	1.6 mm	1.6 mm
Inner Diameter - Supplied [diameter]	3.5 mm	3.5 mm
Inner Diameter - Supplied [diameter]	0.138 in	0.138 in
Length	-	Enter Number of Feet in Order Quantity
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.02 in	0.02 in
Recovered Wall Thickness	0.51 mm	0.51 mm
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	152.5 m
Spool Size	-	500.3 ft
Type	Tubing, Flexible	Tubing, Flexible

B2 1/8 Series

HEATSHRINK 1/8" WHITE FOOT

Part	Shrinkage Ratio	Features	Color	Length	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Spool Size	Spool Size	Material	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]
Sumitomo Electric Interconnect Products, Inc. B2 1/8 WHITE SPL	2 to 1	Flame Retardant	White	Enter Number of Feet in Order Quantity	0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C	152.5 m	500.3 ft	Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in
Sumitomo Electric Interconnect Products, Inc. B2 1/8 GREEN 4FT	2 to 1	Flame Retardant	Green		0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C			Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/8 RED 4FT	2 to 1	Flame Retardant	Red		0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C			Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLACK SPL	2 to 1	Flame Retardant, UV Resistant	Black	Enter Number of Feet in Order Quantity	0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C	152.5 m	500.3 ft	Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in
Sumitomo Electric Interconnect Products, Inc. B2 1/8 GREEN SPL	2 to 1	Flame Retardant	Green	Enter Number of Feet in Order Quantity	0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C	152.5 m	500.3 ft	Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in
Sumitomo Electric Interconnect Products, Inc. B2 1/8 YELLOW 4FT	2 to 1	Flame Retardant	Yellow		0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C			Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/8 RED SPL	2 to 1	Flame Retardant	Red	Enter Number of Feet in Order Quantity	0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C	152.5 m	500.3 ft	Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in
Sumitomo Electric Interconnect Products, Inc. B2 1/8 YELLOW SPL	2 to 1	Flame Retardant	Yellow	Enter Number of Feet in Order Quantity	0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C	152.5 m	500.3 ft	Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in
Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLUE 4FT	2 to 1	Flame Retardant	Blue		0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C			Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLACK 4FT	2 to 1	Flame Retardant, UV Resistant	Black		0.02 in	0.51 mm	135 °C	-55 °C	0.063 in	1.6 mm	90 °C			Polyolefin (PO), Irradiated	Tubing, Flexible	3.5 mm	0.138 in	1.22 m	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		5	$ 0.67
		10	$ 0.51
		25	$ 0.48
		50	$ 0.47

Description

General part information

B2 1/8 Series

Heat Shrink Tubing, Flexible 0.138" (3.50mm) 2 to 1 Yellow 4.00' (1.22m)

Documents

Technical documentation and resources

Datasheet

Sumitube® Solution Guide

Datasheet
