1116191

Active

Phoenix Contact

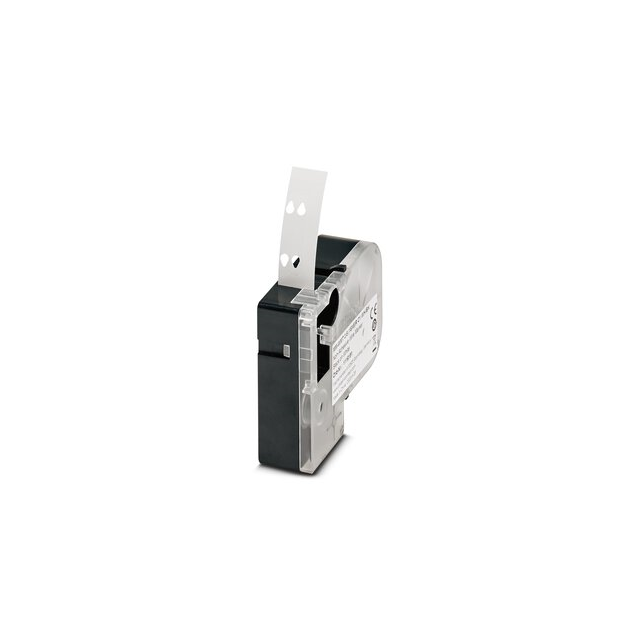

CABLE MARKER, ROLL, WHITE, UNLAB

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE MARKER, ROLL, WHITE, UNLAB

Technical Specifications

Parameters and characteristics commom to parts in this series

CABLE MARKER, ROLL, WHITE, UNLAB

Part	Label Size [y]	Label Size [x]	Label Size [Max]	Label Size [Min]	Label Size [Min]	Label Size [x]	Label Size [Max]	Label Size [y]	Color	Material	Label Type	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [Min] [diameter]	Label Size [Min] [diameter]	Label Size [Max] [diameter]	Label Size [Max] [diameter]
Phoenix Contact 1116144	0.17 "	29.3 mm	0.09 "	1 mm	0.04 "	1.15 "	2.4 mm	4.2 mm	White	Polyester	Standard	-40 °C	120 °C
Phoenix Contact 1116191	0.2 in	31.4 mm	0.14 in	2 mm	0.08 in	1.24 in	3.5 mm	5 mm	White	Polyester	Standard	-40 °C	120 °C
Phoenix Contact 1116193		1.35 in, 34.4 mm		0.16 in, 4 mm			0.22 in, 5.5 mm	0.31 ", 8 mm	White	Polyester	Standard	-40 °C	120 °C
Phoenix Contact 1116192	0.24 in	31.4 mm	0.17 "	3 mm	0.12 in	1.24 in	4.2 mm	6 mm	White	Polyester	Standard	-40 °C	120 °C
Phoenix Contact 1116194	0.41 "	44.4 mm				1.75 in		10.4 mm	White	Polyester	Standard	-40 °C	120 °C	0.2 "	5 mm	0.33 "	8.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.24

General part information

White Standard Label 1.24" x 0.20" (31.4mm x 5.0mm); Cable O.D. 0.08" ~ 0.14" (2.0mm ~ 3.5mm)
