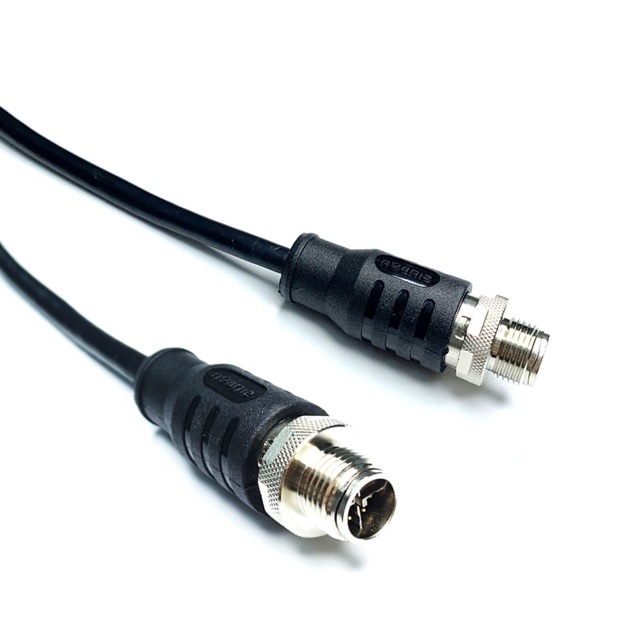

M12X-08CMS00-UL24N10

Active

SINBON

CIRC CBL 8POS RCPT TO RCPT 3.28'

Search across all available documentation for this part.

Active

SINBON

CIRC CBL 8POS RCPT TO RCPT 3.28'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M12X-08CMS00-UL24N10	M12X Series

1st Connector Gender	Male Pins	Female Sockets, Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions	8 positions
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Receptacle	Plug, Receptacle
2nd Connector Gender	-	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	8	8
2nd Connector Number of Positions Loaded	All	All
2nd Connector Shell Size - Insert	M12	M12
2nd Connector Type	Receptacle	Plug, Receptacle
Assembly Configuration	Standard	Standard
Cable Type	Round	Round
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length [x]	1 m	1 - 3 m
Length [x]	3.28 ft	3.28 - 9.84 ft
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

CIRC CBL 8POS PLUG TO PLUG 9.84'

Part	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Mounting Type	1st Connector Gender	Ingress Protection	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Orientation [custom]	1st Connector Type	1st Connector Number of Positions Loaded	Usage	Shielding	1st Connector Number of Positions	Cable Type	Assembly Configuration	2nd Connector Type	2nd Connector Gender	2nd Connector Shell Size - Insert	1st Connector Shell Size - Insert
SINBON M12X-08CFS00-UL24N30	8	All	Free Hanging (In-Line)	Female Sockets	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	9.84 ft	3 m	Keyed	Plug	All	Industrial Environments	Unshielded	8 positions	Round	Standard	Plug	Female Sockets	M12	M12
SINBON M12X-08CFS00-UL24N10	8	All	Free Hanging (In-Line)	Female Sockets	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	3.28 ft	1 m	Keyed	Plug	All	Industrial Environments	Unshielded	8 positions	Round	Standard	Plug	Female Sockets	M12	M12
SINBON M12X-08CMS00-UL24N10	8	All	Free Hanging (In-Line)	Male Pins	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	3.28 ft	1 m	Keyed	Receptacle	All	Industrial Environments	Unshielded	8 positions	Round	Standard	Receptacle		M12	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
