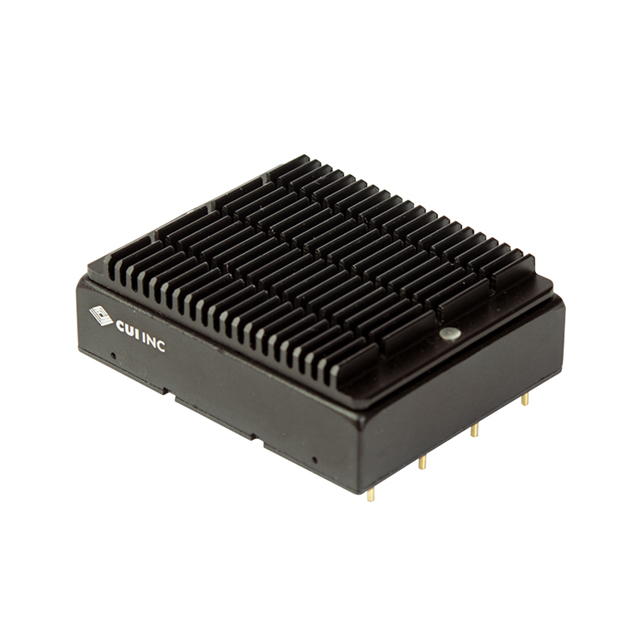

PYB30-Q24-D5-H
Isolated Module DC DC Converter 2 Output 5V -5V 3A, 3A 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PYB30-Q24-D5-H |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 3 A |
| Efficiency | 86 % |
| Features | UVLO, Remote On/Off, OVP, SCP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.64 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1.6 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
