1530B395
ObsoleteHammond Manufacturing
FIXED IND 39UH 188MA 3.36 OHM TH
1530B395
ObsoleteHammond Manufacturing
FIXED IND 39UH 188MA 3.36 OHM TH
Description
General part information
1530B395

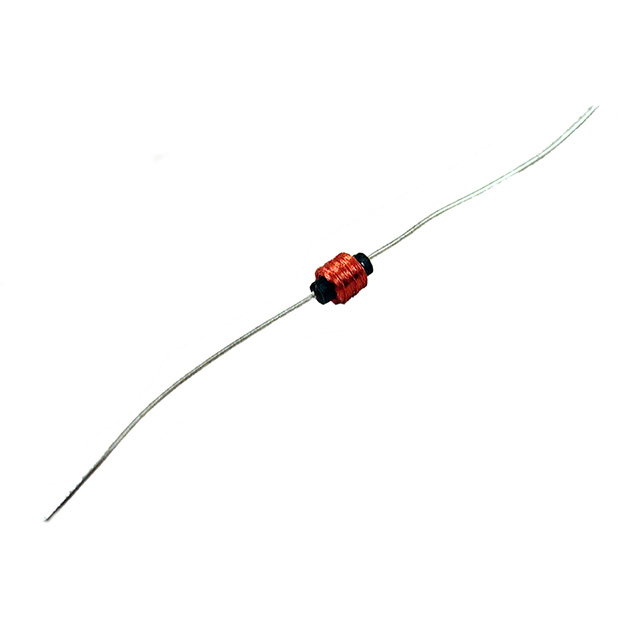

39 µH Unshielded Drum Core, Wirewound Inductor 188 mA 3.36Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 1530B395 |
|---|---|
| Current Rating | 188 mA |
| DC Resistance (DCR) (Max) | 3.36 Ohm |
| Inductance | 39 µH |
| Inductance Frequency - Test | 2.5 MHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Q | 48 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.175 in |
| Size / Dimension Length | 0.25 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
