PM5433.422NLT
ActivePulse Electronics
FIXED IND 4.2UH 27A 4.68MOHM SMD
PM5433.422NLT
ActivePulse Electronics
FIXED IND 4.2UH 27A 4.68MOHM SMD
Description
General part information
PM5433.422NLT

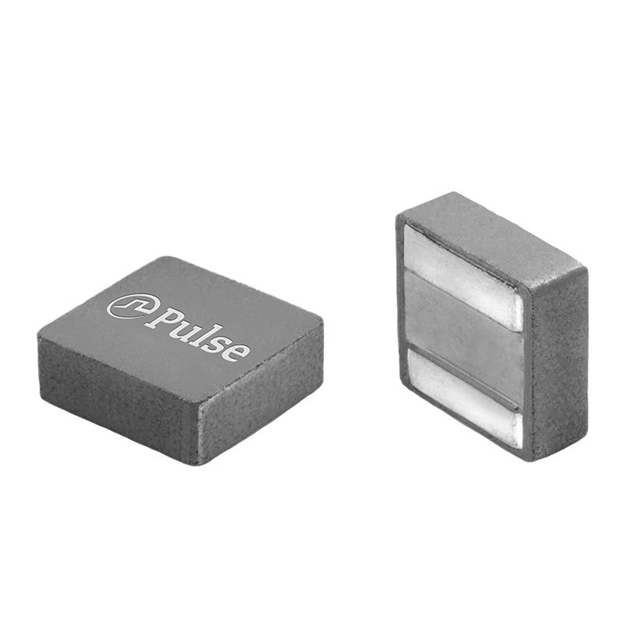

4.2 µH Shielded Inductor 27 A 4.68mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5433.422NLT |
|---|---|
| Current Rating | 27 A |
| DC Resistance (DCR) (Max) | 4.68 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 4.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.65 in |
| Size / Dimension Width | 0.61 in |
| Tolerance | 20 % |
