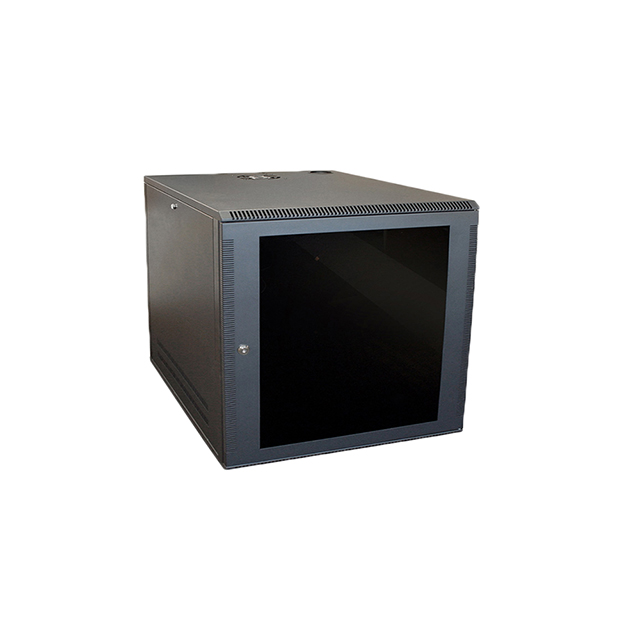

WM2019-07-02

Active

Quest Manufacturing Co.

WALL ENCLOSURE FRONT/SIDE ACCESS

Search across all available documentation for this part.

Active

Quest Manufacturing Co.

WALL ENCLOSURE FRONT/SIDE ACCESS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 20.000" L x 21.000" W x 16.000" H (508.00mm x 533.40mm x 406.40mm) Black

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WM2019-07-02	WM2019 Series

Color	Black	Black
Dimensions - Overall [x]	508 mm	508 mm
Dimensions - Overall [x]	20 in	20 in
Dimensions - Overall [y]	533.4 mm	533.4 mm
Dimensions - Overall [y]	21 in	21 in
Dimensions - Overall [z]	406.4 mm	406.4 - 800.1 mm
Dimensions - Overall [z]	16 in	16 - 31.5 in
Dimensions - Panel [x]	406.4 mm	406.4 mm
Dimensions - Panel [x]	19 in	19 in
Dimensions - Panel [y]	482.6 mm	482.6 mm
Dimensions - Panel [y]	16 "	16 "
Dimensions - Panel [z]	317.5 mm	317.5 - 711.2 mm
Dimensions - Panel [z]	12.5 "	12.5 - 28 "
Door	Acrylic	Acrylic
Material	Metal, Steel	Metal, Steel
Mounting Rails	Two Pair	Two Pair
Number of Units	7U	7U, 9U
Number of Units	-	16 U
Style	Bottom, Enclosed, Sides, Front, Top	Bottom, Enclosed, Sides, Front, Top
Type	Cabinet Rack	Cabinet Rack
Ventilation	Top, Back, Sides, Front	Top, Back, Sides, Front

WALL ENCLOSURE FRONT/SIDE ACCESS

Part	Material	Ventilation	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Mounting Rails	Color	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [x]	Dimensions - Panel [z]	Door	Type	Style	Number of Units	Number of Units
Quest Manufacturing Co. WM2019-07-02	Metal, Steel	Back, Front, Sides, Top	508 mm	20 in	406.4 mm	16 in	533.4 mm	21 in	Two Pair	Black	482.6 mm	317.5 mm	16 "	406.4 mm	19 in	12.5 "	Acrylic	Cabinet Rack	Bottom, Enclosed, Front, Sides, Top	7U
Quest Manufacturing Co. WM2019-16-02	Metal, Steel	Back, Front, Sides, Top	508 mm	20 in	800.1 mm	31.5 "	533.4 mm	21 in	Two Pair	Black	482.6 mm	711.2 mm	16 "	406.4 mm	19 in	28 in	Acrylic	Cabinet Rack	Bottom, Enclosed, Front, Sides, Top		16 U
Quest Manufacturing Co. WM2019-09-02	Metal, Steel	Back, Front, Sides, Top	508 mm	20 in	495.3 mm	19.5 in	533.4 mm	21 in	Two Pair	Black	482.6 mm	406.4 mm	16 "	406.4 mm	19 in	16 in	Acrylic	Cabinet Rack	Bottom, Enclosed, Front, Sides, Top	9U
