09120082734

Active

HARTING Technology Group

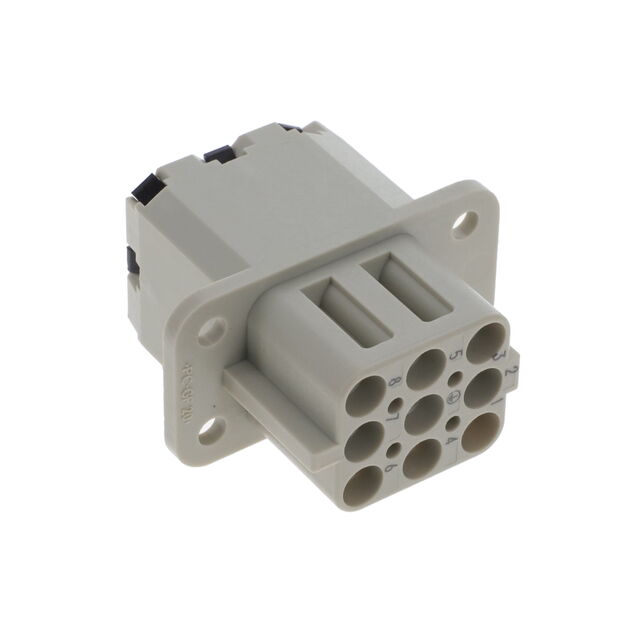

INSERT FEMALE 8POS PUSH IN LOCK

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT FEMALE 8POS PUSH IN LOCK

Technical Specifications

Parameters and characteristics for this part

Specification	09120082734

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In with Lock
Voltage Rating	500 V

Part	Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Housing Material	Contact Material	Number of Positions	Contact Finish	Voltage Rating	Gender	Material Flammability Rating
HARTING Technology Group 09120082634	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Male	UL94 V-0
HARTING Technology Group 09120082734	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Female	UL94 V-0
HARTING Technology Group 09120082733	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Female	UL94 V-0
HARTING Technology Group 09120082633	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Male	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 8 Position Push In with Lock
