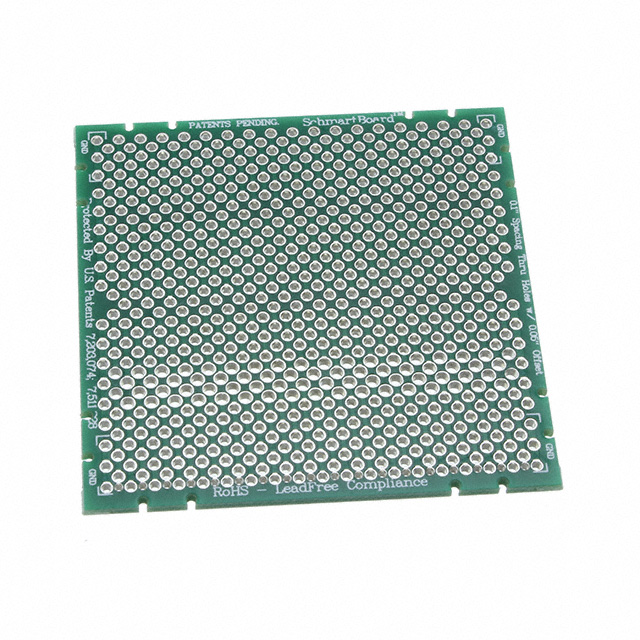

201-0001-01

Active

Schmartboard, Inc.

BREADBOARD GENERAL PURPOSE NPTH

Search across all available documentation for this part.

Active

Schmartboard, Inc.

BREADBOARD GENERAL PURPOSE NPTH

Technical Specifications

Parameters and characteristics for this part

BREADBOARD GENERAL PURPOSE NPTH

Part	Plating	Pitch [x]	Pitch [x]	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type
Schmartboard, Inc. 201-0001-01	Non-Plated Through Hole (NPTH)	1.27 mm, 2.54 mm	0.05 in, 0.1 in	0.97 mm	0.038 in	Pad Per Hole (Round)	2 in	50.8 mm	2 in	50.8 mm	Breadboard, General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.00

General part information

Breadboard, General Purpose Non-Plated Through Hole (NPTH) Pad Per Hole (Round) 0.05" (1.27mm) Offset, 0.1" (2.54mm), Grid
