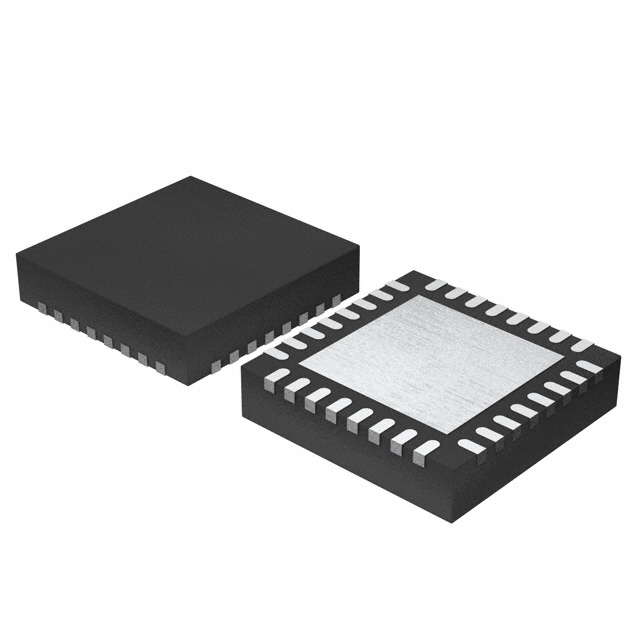

ZL40226LDG1
Active2:8 LVDS FANOUT BUFFER W/EXT. TERM. 32 VQFN 5X5X1MM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ZL40226LDG1
Active2:8 LVDS FANOUT BUFFER W/EXT. TERM. 32 VQFN 5X5X1MM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL40226LDG1 | ZL40226 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 750 MHz | 750 MHz |
| Input | LVCMOS, HCSL, CML, LVDS, LVPECL | LVCMOS, HCSL, CML, LVDS, LVPECL |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | LVDS | LVDS |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Ratio - Input:Output [custom] | 8 | 8 |
| Ratio - Input:Output [custom] | 2 | 2 |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) |
| Type | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 2.375 V | 2.375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.52 | |
| 25 | $ 6.27 | |||
| 100 | $ 5.76 | |||
| Microchip Direct | TRAY | 1 | $ 7.52 | |
| 25 | $ 6.27 | |||
| 100 | $ 5.69 | |||
| 1000 | $ 5.28 | |||
| 5000 | $ 4.99 | |||
| Newark | Each | 100 | $ 5.69 | |
ZL40226 Series
Precision 1:8 LVDS Buffer w/Ref Switching
| Part | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Type | Mounting Type | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Frequency - Max [Max] | Supplier Device Package | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Input | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL40226LDG1 | 8 | 2 | Fanout Buffer (Distribution), Multiplexer | Surface Mount | 32-VFQFN Exposed Pad | 2.375 V | 3.465 V | 750 MHz | 32-QFN (5x5) | 1 | 85 °C | -40 °C | CML, HCSL, LVCMOS, LVDS, LVPECL | LVDS | ||
Microchip Technology ZL40226LDG1 | ||||||||||||||||
Microchip Technology ZL40226LDF1 | 8 | 2 | Fanout Buffer (Distribution), Multiplexer | Surface Mount | 32-VFQFN Exposed Pad | 2.375 V | 3.465 V | 750 MHz | 32-QFN (5x5) | 1 | 85 °C | -40 °C | CML, HCSL, LVCMOS, LVDS, LVPECL | LVDS |
Description
General part information
ZL40226 Series
The ZL40226 is an LVDS clock fanout buffer with eight identical output clock drivers capable of operating at frequencies up to 750MHz.
The two Inputs to the ZL40226 are externally terminated to allow use of precision termination components and to allow full flexibility of input termination. The ZL40226 can accept DC coupled LVPECL or LVDS and AC coupled LVPECL, LVDS, CML or HCSL input signals; single ended input signals can also be accepted. A pin compatible device with internal termination is also available.
The ZL40226 is designed to fan out low-jitter reference clocks for wired or optical communications applications while adding minimal jitter to the clock signal. An internal linear power supply regulator and bulk capacitors minimize additive jitter due to power supply noise. The device operates from 2.5V+/-5% or 3.3V+/-5% supply. It's operation is guaranteed over the industrial temperature range -40°C to +85°C.
