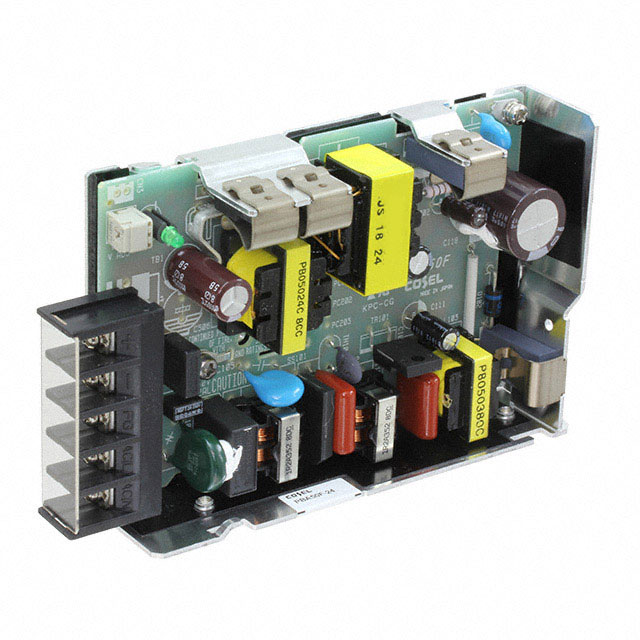

Specification	PBA50F-36

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CE
Current - Output 1	1.4 A
Efficiency	85 %
Features	Universal Input, DC Input Capable
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	50 W
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Output 1	36 V

PBA50 Series

Switching Power Supplies

...

Part	Minimum Load Required	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Current - Output 1	Applications	Type	Approval Agency	Voltage - Isolation	Voltage - Output 1	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Outputs	Efficiency	Power (Watts)	Features
Cosel USA, Inc. PBA50F-15-TN	No	1.22 in	3.23 in	4.72 in	3.5 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	15 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	83 %
Cosel USA, Inc. PBA50F-5-JRN	No	1.22 in	3.23 in	4.72 in	10 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	5 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	82 %
Cosel USA, Inc. PBA50F-15-JR	No	1.22 in	3.23 in	4.72 in	3.5 A	ITE (Commercial)	Open Frame	CE cURus TUV	3 kV	15 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	83 %
Cosel USA, Inc. PBA50F-5-N	No				10 A	ITE (Commercial)	Enclosed	CE cURus TUV		5 V	85 VAC	264 V			Chassis Mount	1	82 %	50 W	DC Input Capable Universal Input
Cosel USA, Inc. PBA50F-48-TN	No	1.22 in	3.23 in	4.72 in	1.1 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	48 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	85 %
Cosel USA, Inc. PBA50F-36-GN1	No	1.22 in	3.23 in	4.72 in	1.4 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	36 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	85 %
Cosel USA, Inc. PBA50F-3R3-JN	No	1.22 in	3.23 in	4.72 in	10 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	3.3 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	76 %
Cosel USA, Inc. PBA50F-24-TVN	No	1.22 in	3.23 in	4.72 in	2.2 A	ITE (Commercial)	Enclosed	CE cURus TUV	3 kV	24 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	84 %
Cosel USA, Inc. PBA50F-15-R	No	1.22 in	3.23 in	4.72 in	3.5 A	ITE (Commercial)	Open Frame	CE cURus TUV	3 kV	15 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	83 %
Cosel USA, Inc. PBA50F-12-T	No	1.22 in	3.23 in	4.72 in	4.3 A	ITE (Commercial)	Open Frame	CE cURus TUV	3 kV	12 V	85 VAC	264 V	-10 °C	71 °C	Chassis Mount	1	82 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PBA50F-36 | Datasheet
