120528-2

Active

TE Connectivity Raychem Cable Protection

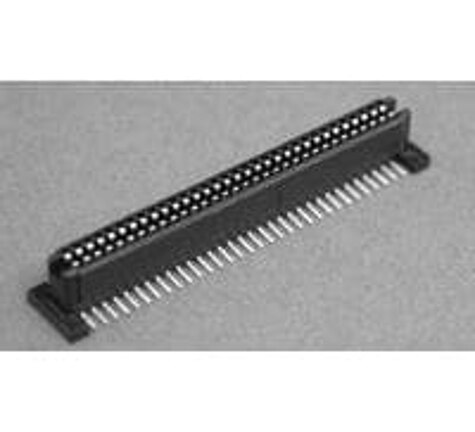

CONN RCPT 84POS SMD GOLD

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT 84POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	120528-2

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Height Above Board	0.211 in
Height Above Board	5.35 mm
Mated Stacking Heights	10 mm, 8 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	84
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Height Above Board	Height Above Board	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights
TE Connectivity Raychem Cable Protection 120528-2	0.211 in	5.35 mm	Receptacle Outer Shroud Contacts	0.039 in	1 mm	2	84	Surface Mount	50 µin	1.27 µm	Gold	8 mm 9 mm 10 mm
TE Connectivity Raychem Cable Protection 120528-1	0.211 in	5.35 mm	Receptacle Outer Shroud Contacts	0.039 in	1 mm	2	64	Surface Mount	50 µin	1.27 µm	Gold	8 mm 9 mm 10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1300	$ 5.97

General part information

84 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
