PT8A2803ZEE
ObsoleteDiodes Inc
IC BATT CHG LI-ION 1CELL 8TDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT8A2803ZEE
ObsoleteDiodes Inc
IC BATT CHG LI-ION 1CELL 8TDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT8A2803ZEE |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Battery Pack Voltage | 4.2 V |
| Charge Current - Max [Max] | 500 mA |
| Current - Charging | Constant - Programmable |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |

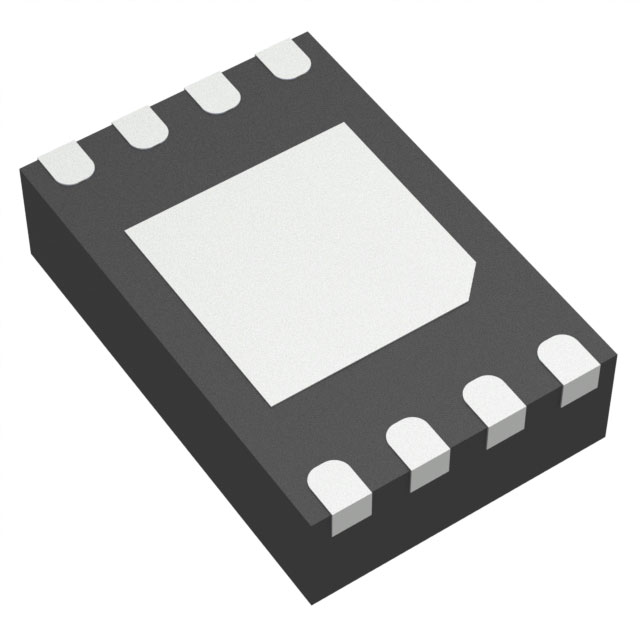

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PT8A2803 Series
Charger IC Lithium Ion/Polymer 8-TDFN (2x3)
