1200741-1

Active

TE Connectivity Raychem Cable Protection

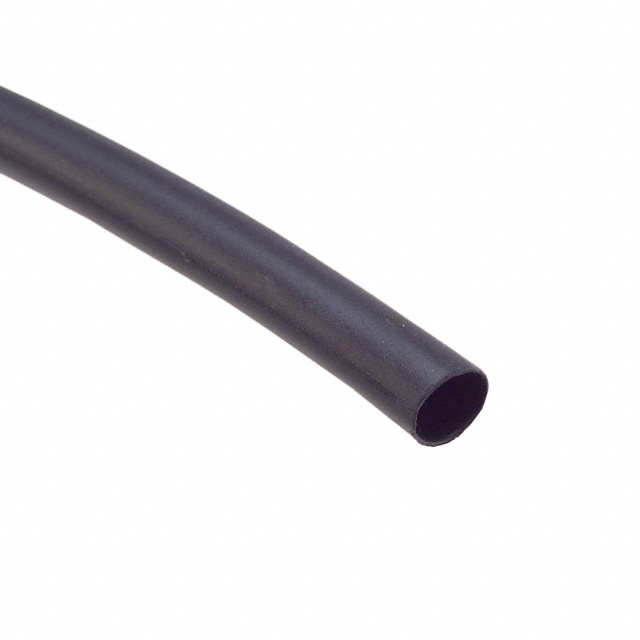

HEATSHRINK LOW TEMP 1/4" 40' BLK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK LOW TEMP 1/4" 40' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	1200741-1

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	7.11 mm
Inner Diameter - Supplied [diameter]	0.28 in
Length [x]	12.2 m
Length [x]	40 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.025 "
Recovered Wall Thickness [custom]	0.64 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

Part	Shrinkage Ratio	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Shrink Temperature	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]	Color	Shelf Life
TE Connectivity Raychem Cable Protection 1200741-1	2 to 1	Polyolefin (PO)	0.125 in	3.18 mm	70 °C	Tubing Flexible	7.11 mm	0.28 in	0.025 "	0.64 mm	Flame Retardant	135 °C	-55 °C	18 °C 65 °F	35 °C	12.2 m	40 ft	Black	144 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.280" (7.11mm) 2 to 1 Black 40.0' (12.2m)
