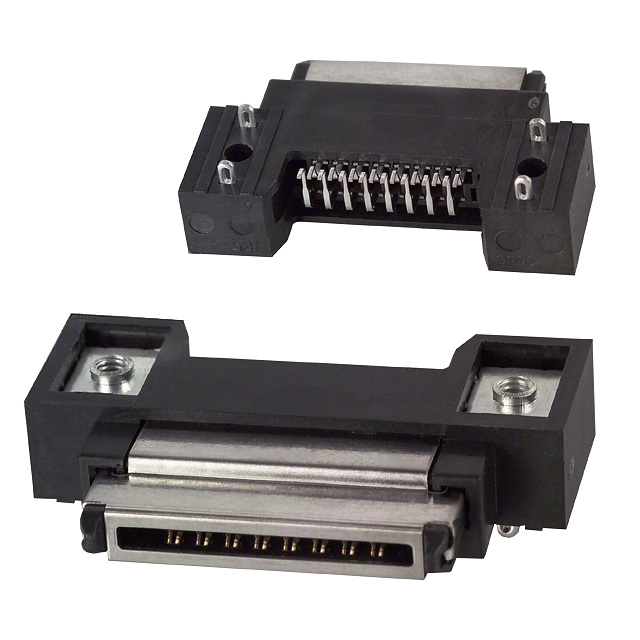

3560-16P-PG(50)

Obsolete

Hirose Electric Co Ltd

CONN MULTI-PURP PLUG 16P R/A SMD

Search across all available documentation for this part.

Obsolete

Hirose Electric Co Ltd

CONN MULTI-PURP PLUG 16P R/A SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Multi-Purpose Plug Connector Solder Surface Mount, Right Angle

Technical documentation and resources

No documents available

Part	Connector Style	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Connector Type	Number of Positions
Hirose Electric Co Ltd 3560-16SR(30)
Hirose Electric Co Ltd 3560-24SR(31)	Receptacle	Gold	Solder	0.76 Ám	30 Áin	24	Surface Mount, Right Angle	Multi-Purpose
Hirose Electric Co Ltd 3560-16P-PG(50)	Plug	Gold	Solder	0.203 çm	8 çin		Surface Mount, Right Angle	Multi-Purpose	16
Hirose Electric Co Ltd 3560-16P-PG(61)	Plug	Gold	Solder				Surface Mount, Right Angle	Multi-Purpose	16
Hirose Electric Co Ltd 3560-24SR(30)	Receptacle	Gold	Solder	0.76 Ám	30 Áin	24	Surface Mount, Right Angle	Multi-Purpose
Hirose Electric Co Ltd 3560-24P-PG(57)	Plug	Gold	Solder	0.76 Ám	30 Áin	24	Surface Mount, Right Angle	Multi-Purpose
Hirose Electric Co Ltd 3560-24S(30)
