BS-31-10-P

Active

3M (TC)

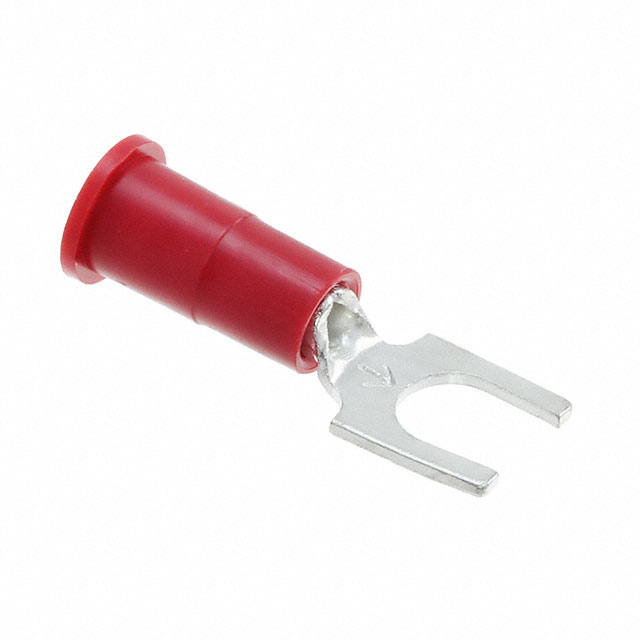

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BS-31-10-P

Active

3M (TC)

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BS-31-10-P

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

BS-31 Series

Part	Termination	Color	Insulation	Material - Insulation	Stud/Tab Size	Terminal Type	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Features	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Length - Termination	Length - Termination [x]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter	Insulation Diameter [diameter]	Length - Termination [x]
3M (TC) BS-31-8-NB	Crimp	Red	Insulated	Nylon Polyamide (PA)	8 Stud	Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG
3M (TC) BS-31-8	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	6 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.5 mm
3M (TC) BS-31-6S-P	Crimp	Red	Insulated	Vinyl		Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	6 Stud	0.25 in	6.35 mm	Copper ETP		0.45 in	0.85 "	21.59 mm	0.25 "	6.35 mm	3.68 mm	0.145 "	11.43 mm
3M (TC) BS-31-4S	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	4 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.5 mm	0.25 "	6.35 mm
3M (TC) BS-31-10-P	Crimp	Red	Insulated	Vinyl		Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	10 Stud	0.25 in	6.35 mm	Copper ETP		0.45 in	0.85 "	21.59 mm			3.68 mm	0.145 "	11.43 mm
3M (TC) BS-31-10-W	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Brazed Seam	10 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.51 mm
3M (TC) BS-31-6	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	6 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.5 mm
3M (TC) BS-31-6S-W	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Brazed Seam	6 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.51 mm	0.25 "	6.35 mm
3M (TC) BS-31-4S-P	Crimp	Red	Insulated	Vinyl		Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Butted Seam	4 Stud	0.25 in	6.35 mm	Copper ETP		0.45 in	0.85 "	21.59 mm	0.25 "	6.35 mm	3.68 mm	0.145 "	11.43 mm
3M (TC) BS-31-6-W	Crimp		Non-Insulated			Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG	Tin	Brazed Seam	6 Stud	0.25 in	6.35 mm	Copper ETP	6.35 mm	0.25 "	0.65 "	16.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 0.37
		10	$ 0.28
		25	$ 0.25
		50	$ 0.23
		100	$ 0.21
		250	$ 0.19
		500	$ 0.18
		1000	$ 0.16
		2500	$ 0.15

Description

General part information

BS-31 Series

Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG
