10N20X19

Active

J.W. Winco

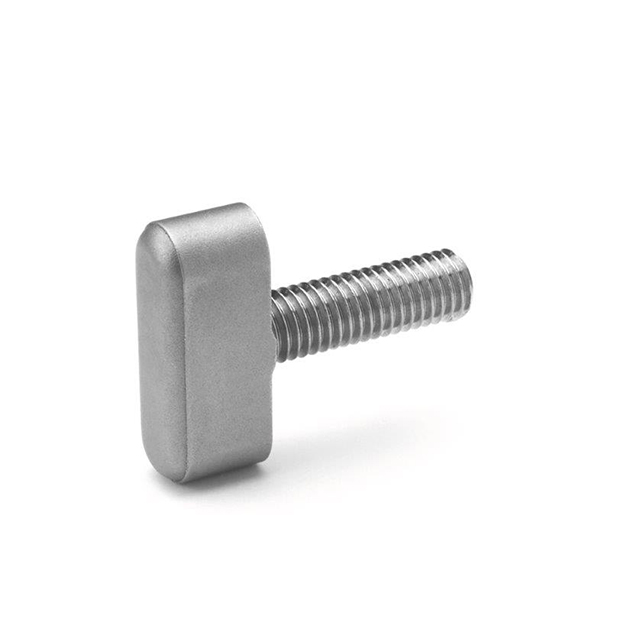

STAINLESS STEEL WING SCREW

Search across all available documentation for this part.

Active

J.W. Winco

STAINLESS STEEL WING SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10N20X19	10N20 Series

Color	-	Black
Diameter [diameter]	36.07 mm	36.07 - 50.04 mm
Diameter [diameter]	1.42 in	1.42 - 1.97 "
Height	-	1.26 in
Height	-	32 mm
Height [z]	14.48 mm	7.87 - 29.97 mm
Height [z]	0.57 in	0.31 - 1.18 in
Indicator [custom]	No Indicator	No Indicator
Material	Metal	Metal, Plastic
Shaft Size	M10	M10
Style	-	Clamping, Cylindrical
Type	2 Arm	Adjustable Lever, 5 Arm, Straight, Knurled, 2 Arm, Fluted

ADJ LEVER PLASTIC, STEEL M10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.67

General part information

2 Arm Knob M10 Shaft with No Indicator Metal
