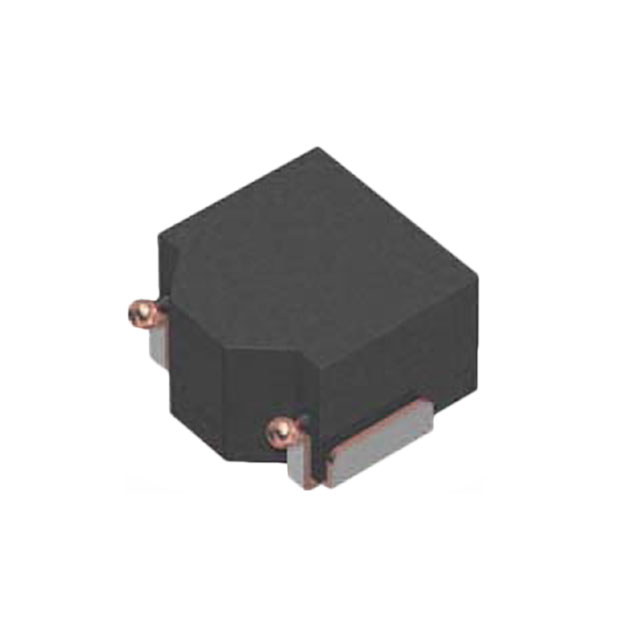

SPM3012T-4R7M-CA02
ActiveTDK Corporation
FIXED IND 4.7UH 1.7A 0.2663OHM
Deep-Dive with AI
Search across all available documentation for this part.
SPM3012T-4R7M-CA02
ActiveTDK Corporation
FIXED IND 4.7UH 1.7A 0.2663OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SPM3012T-4R7M-CA02 | SPM3012T Series |
|---|---|---|
| Current - Saturation (Isat) | 2.3 A | 2.3 - 5 A |
| Current Rating (Amps) | 1.7 A | 1.7 - 4.5 A |
| DC Resistance (DCR) | - | 102.3 mOhm |
| DC Resistance (DCR) [Max] | 266.3 mOhm | 34.8 - 266.3 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in | 0.047 in |
| Inductance | 4.7 ÁH | 1 - 470 µH |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Material - Core | Metal | Metal |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Shielded | Shielded |
| Size / Dimension [x] | 3.2 mm | 3.2 mm |
| Size / Dimension [x] | 0.126 in | 0.126 in |
| Size / Dimension [y] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.118 in | 0.118 in |
| Tolerance | 20 % | 20 % |
| Type | Wirewound, Drum Core | Wirewound, Drum Core |
SPM3012T Series
FIXED IND 1UH 3.4A 0.0594OHM SMD
| Part | Tolerance | Current - Saturation (Isat) | Inductance Frequency - Test | Shielding | Package / Case | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK Corporation SPM3012T-1R0M-CA02 | 20 % | 5 A | 100 kHz | Shielded | Nonstandard | Metal | 1.2 mm | 0.047 in | 3.4 A | -40 °C | 105 ░C | 59.4 mOhm | Drum Core, Wirewound | Surface Mount | 3 mm | 3.2 mm | 0.126 in | 0.118 in | 1 µH | |
TDK Corporation SPM3012T-4R7M-CA02 | 20 % | 2.3 A | 100 kHz | Shielded | Nonstandard | Metal | 1.2 mm | 0.047 in | 1.7 A | -40 °C | 105 ░C | 266.3 mOhm | Drum Core, Wirewound | Surface Mount | 3 mm | 3.2 mm | 0.126 in | 0.118 in | 4.7 ÁH | |
TDK Corporation SPM3012T-3R3M-CA02 | 20 % | 2.7 A | 100 kHz | Shielded | Nonstandard | Metal | 1.2 mm | 0.047 in | 1.8 A | -40 °C | 105 ░C | 195.2 mOhm | Drum Core, Wirewound | Surface Mount | 3 mm | 3.2 mm | 0.126 in | 0.118 in | 3.3 µH | |
TDK Corporation SPM3012T-2R2M-CA02 | 20 % | 3.7 A | 100 kHz | Shielded | Nonstandard | Metal | 1.2 mm | 0.047 in | 2.6 A | -40 °C | 105 ░C | Drum Core, Wirewound | Surface Mount | 3 mm | 3.2 mm | 0.126 in | 0.118 in | 2.2 µH | 102.3 mOhm | |
TDK Corporation SPM3012T-R47M-CA02 | 20 % | 100 kHz | Shielded | Nonstandard | Metal | 1.2 mm | 0.047 in | 4.5 A | -40 °C | 105 ░C | 34.8 mOhm | Drum Core, Wirewound | Surface Mount | 3 mm | 3.2 mm | 0.126 in | 0.118 in | 470 nH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.77 | |
Description
General part information
SPM3012T Series
4.7 µH Shielded Drum Core, Wirewound Inductor 1.7 A 266.3mOhm Max Nonstandard
