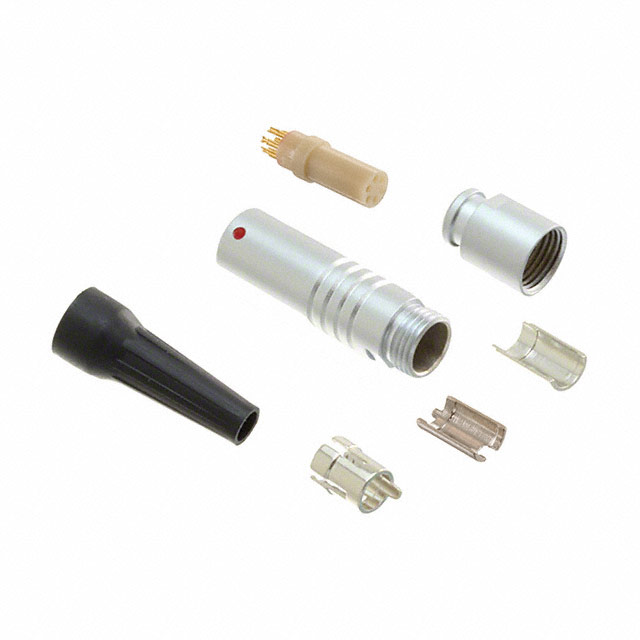

Specification	820B006-273L351

Applications	Telecommunications, Medical, Instrumentation, Testing Equipment & Measurement, Industrial
Backshell Material	Brass
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	2.5 A
Fastening Type	Push-Pull
Features	Backshell, Strain Relief
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Plating	Chrome
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	280 VAC
