PEWAN1029
ActivePasternack
WR-5 WAVEGUIDE STANDARD GAIN HOR
PEWAN1029
ActivePasternack
WR-5 WAVEGUIDE STANDARD GAIN HOR
Description
General part information
PEWAN1029

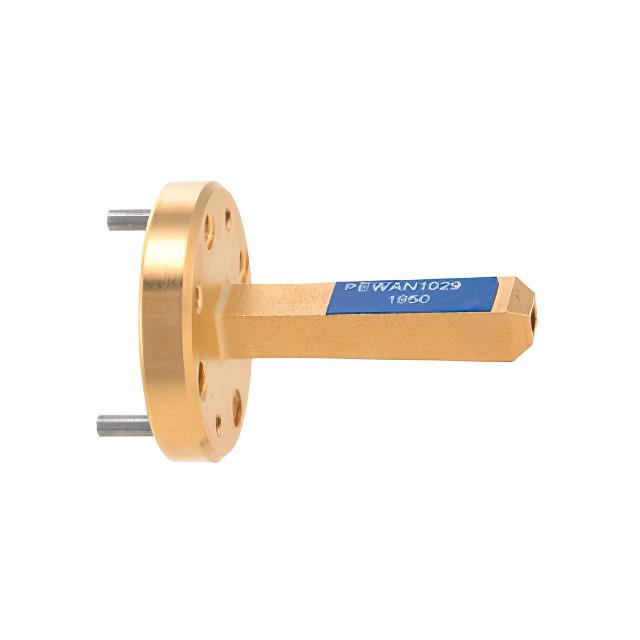

RF ANTENNA General Purpose Horn Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN1029 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 180 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 220 GHz |
| Frequency Range (Min) | 140 GHz |
| Gain | 10 dBi |
| Height (Max) | 1 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| VSWR | 1.15 |
