140825-2

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-22AWG 0.110

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-22AWG 0.110

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140825-2	140825 Series

Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	0.098 "	0.098 "
Insulation Diameter [Max] [diameter]	2.5 mm	2.5 mm
Insulation Diameter [Min] [diameter]	1.5 mm	1.5 mm
Insulation Diameter [Min] [diameter]	0.059 "	0.059 "
Length - Overall [x]	0.634 in	0.634 in
Length - Overall [x]	16.1 mm	16.1 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	6.35 mm	6.35 mm
Tab Length	0.25 in	0.25 in
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp

CONN QC RCPT 17-22AWG 0.110

Part	Termination	Gender	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Terminal Type	Tab Thickness	Tab Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Contact Material	Mounting Type	Contact Finish	Tab Width	Tab Width
TE Connectivity AMP Connectors 140825-2	Crimp	Female	Non-Insulated	0.634 in	16.1 mm	6.35 mm	0.25 in	Standard	0.032 in	0.81 mm	1.5 mm	0.059 "	0.098 "	2.5 mm	Brass	Free Hanging (In-Line)	Tin	2.79 mm	0.11 "
TE Connectivity AMP Connectors 140825-1	Crimp	Female	Non-Insulated	0.634 in	16.1 mm	6.35 mm	0.25 in	Standard	0.032 in	0.81 mm	1.5 mm	0.059 "	0.098 "	2.5 mm	Brass	Free Hanging (In-Line)		2.79 mm	0.11 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

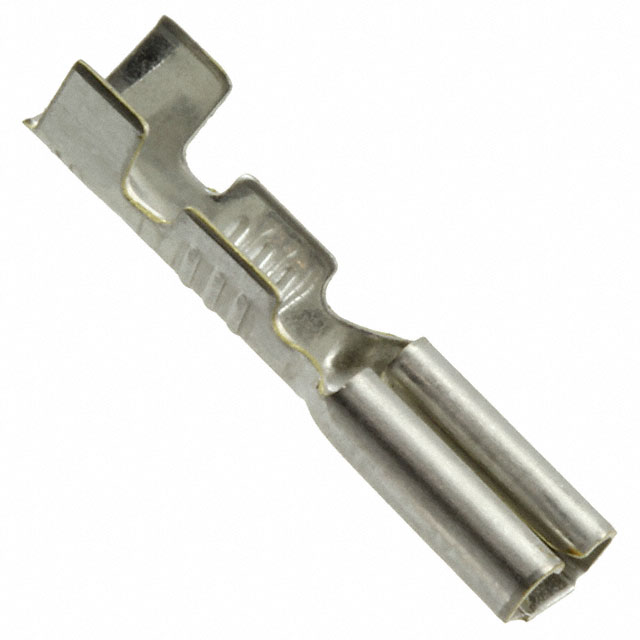

0.110" (2.79mm) Quick Connect Female 17-22 AWG Crimp Connector Non-Insulated
