NTCLE100E3109JB0
ActiveVishay Dale
NTC CU 0.6 LD CODED 10R 5% BULK E3
NTCLE100E3109JB0
ActiveVishay Dale
NTC CU 0.6 LD CODED 10R 5% BULK E3
Description
General part information
NTCLE100E3109JB0

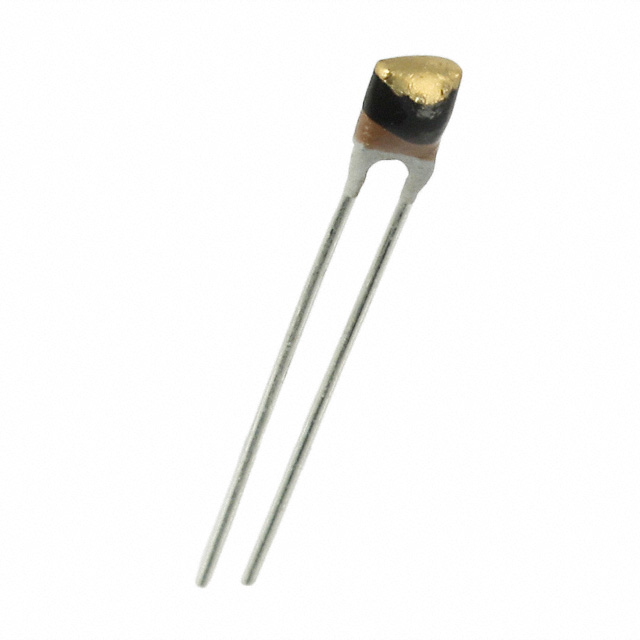

NTC Thermistor 10 Bead
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE100E3109JB0 |
|---|---|
| B Value (25/85) | 2990 K |
| B Value Tolerance | 3 % |
| Length - Lead Wire | 0.55 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 0.5 W |
| Resistance (Ohms) | 10 Ohm |
| Resistance Tolerance (%) | 5 % |
