FSG.1B.303.CLAD52

Active

LEMO

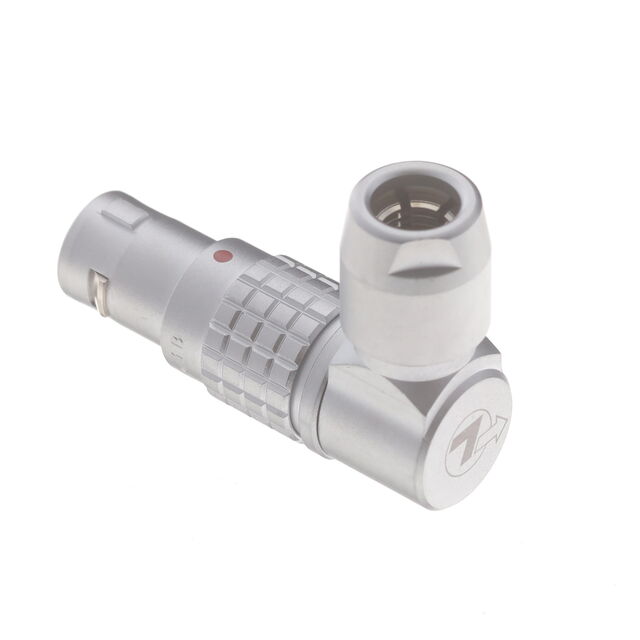

CONN PLUG MALE 3POS SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 3POS SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FSG.1B.303.CLAD52	FSG.1B Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening [Max] [diameter]	5.2 mm	5.2 mm
Cable Opening [Max] [diameter]	0.205 in	0.205 in
Cable Opening [Min] [diameter]	0.169 in	0.169 in
Cable Opening [Min] [diameter]	4.3 mm	4.3 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	12 A	12 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	303
Shielding	Shielded	Shielded

CONN PLUG MALE 3POS SOLDER CUP

Part	Insert Material	Contact Finish - Mating	Connector Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Fastening Type	Ingress Protection	Features	Current Rating (Amps)	Primary Material	Backshell Material, Plating	Shielding	Contact Material	Orientation	Material Flammability Rating	Mounting Type	Shell Material	Color
LEMO FSG.1B.303.CLAD52	Polyetheretherketone (PEEK)	Gold	Male Pins, Plug	Chrome	-55 °C	250 °C	303	5.2 mm	0.205 in	0.169 in	4.3 mm	Push-Pull	IP50	Backshell	12 A	Metal	Brass, Chrome	Shielded	Brass	G	UL94 V-0	Free Hanging (In-Line)	Brass	Silver
