24878-03N
ActiveGrayhill Inc.

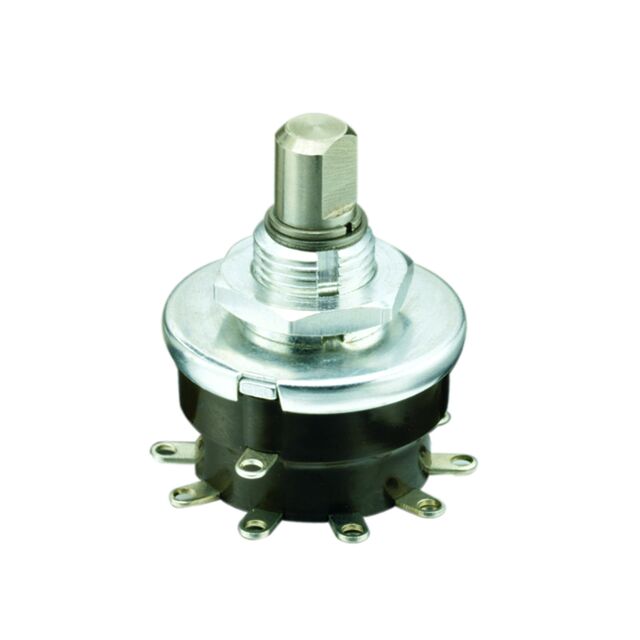

SWITCH ROTARY 3POS 1A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
24878-03N
ActiveGrayhill Inc.
SWITCH ROTARY 3POS 1A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 24878-03N | 24878 Series |
|---|---|---|
| Actuator Type | Flatted | Flatted |
| Actuator Type [diameter] | 6.35 mm | 6.35 mm |
| Angle of Throw | 36 ° | 36 ° |
| Circuit per Deck | SP3T | SP10T, SP6T, SP3T, SPDT, SP7T |
| Contact Finish | Silver | Silver |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Timing | Non-Shorting | Non-Shorting, Shorting |
| Depth Behind Panel [z] | 17.45 mm | 17.45 mm |
| Index Stops | Fixed | Continuous, Fixed |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 | 1 |
| Number of Poles per Deck | 1 | 1 |
| Number of Positions | - | 2 - 10 |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating - AC | 115 V | 115 V |
| Voltage Rating - DC | 28 V | 28 V |
24878 Series
SWITCH ROTARY 10POS 1A 115V
| Part | Circuit per Deck | Number of Decks [custom] | Mounting Type | Index Stops | Depth Behind Panel [z] | Actuator Type [diameter] | Actuator Type | Contact Timing | Contact Material | Voltage Rating - AC | Number of Poles per Deck | Voltage Rating - DC | Angle of Throw | Contact Finish | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 24878-10N | SP10T | 1 | Panel Mount, Through Hole | Continuous | 17.45 mm | 6.35 mm | Flatted | Non-Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin | 10 |
Grayhill Inc. 24878-06S | SP6T | 1 | Panel Mount, Through Hole | Fixed | 17.45 mm | 6.35 mm | Flatted | Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin | 6 |
Grayhill Inc. 24878-03S | SP3T | 1 | Panel Mount, Through Hole | Fixed | 17.45 mm | 6.35 mm | Flatted | Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin | |
Grayhill Inc. 24878-02N | SPDT | 1 | Panel Mount, Through Hole | Fixed | 17.45 mm | 6.35 mm | Flatted | Non-Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin | 2 |
Grayhill Inc. 24878-07S | SP7T | 1 | Panel Mount, Through Hole | Fixed | 17.45 mm | 6.35 mm | Flatted | Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin | 7 |
Grayhill Inc. 24878-03N | SP3T | 1 | Panel Mount, Through Hole | Fixed | 17.45 mm | 6.35 mm | Flatted | Non-Shorting | Phosphor Bronze | 115 V | 1 | 28 V | 36 ° | Silver | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 75.11 | |
| 5 | $ 64.46 | |||
| 10 | $ 60.33 | |||
| 25 | $ 55.25 | |||
| 50 | $ 51.67 | |||
| 100 | $ 48.30 | |||
Description
General part information
24878 Series
Rotary Switch 3 Position SP3T 1A (AC/DC) 115 VAC Panel Mount, Through Hole
